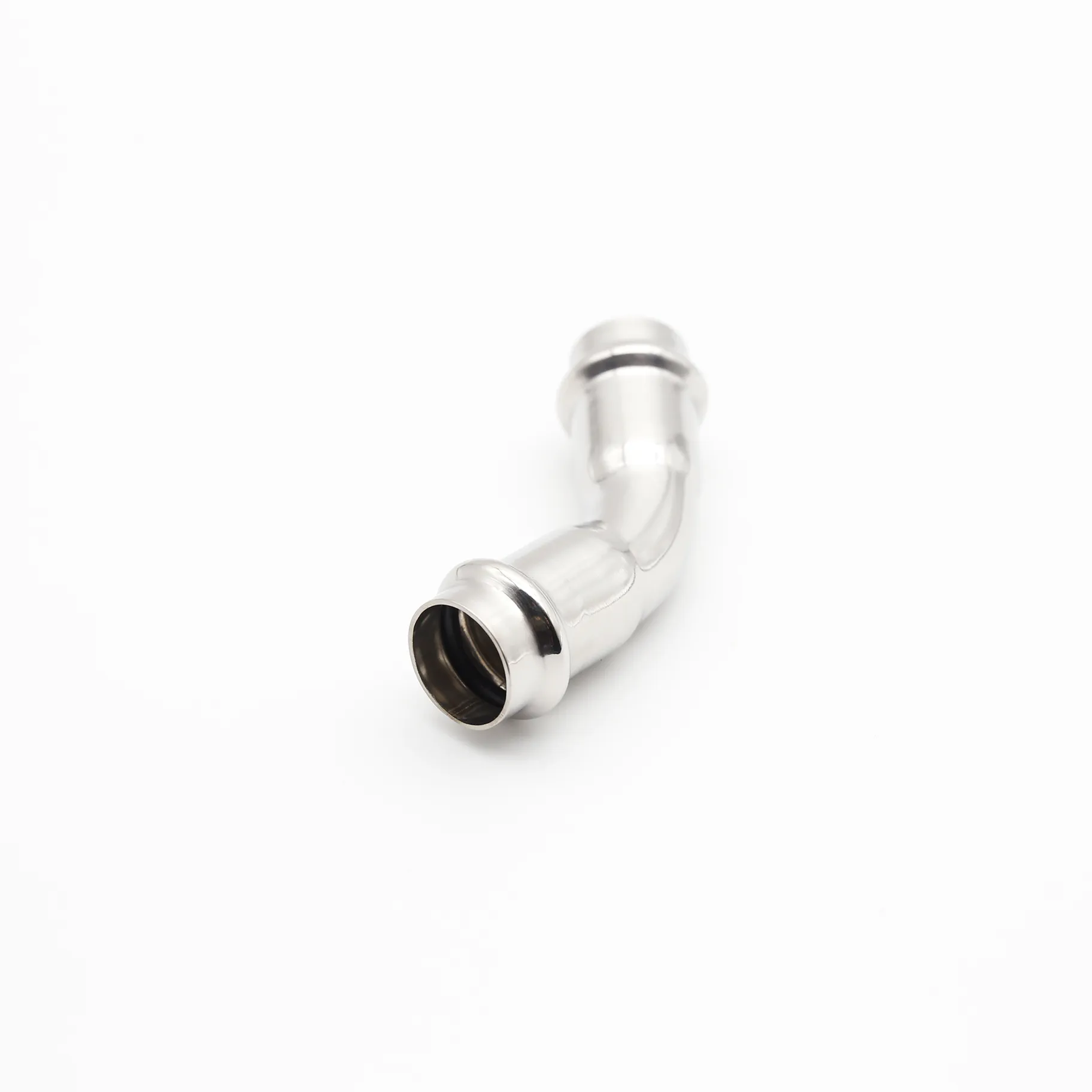

Three-quarter view of a stainless steel 45-degree press-fit elbow isolated on a white background.

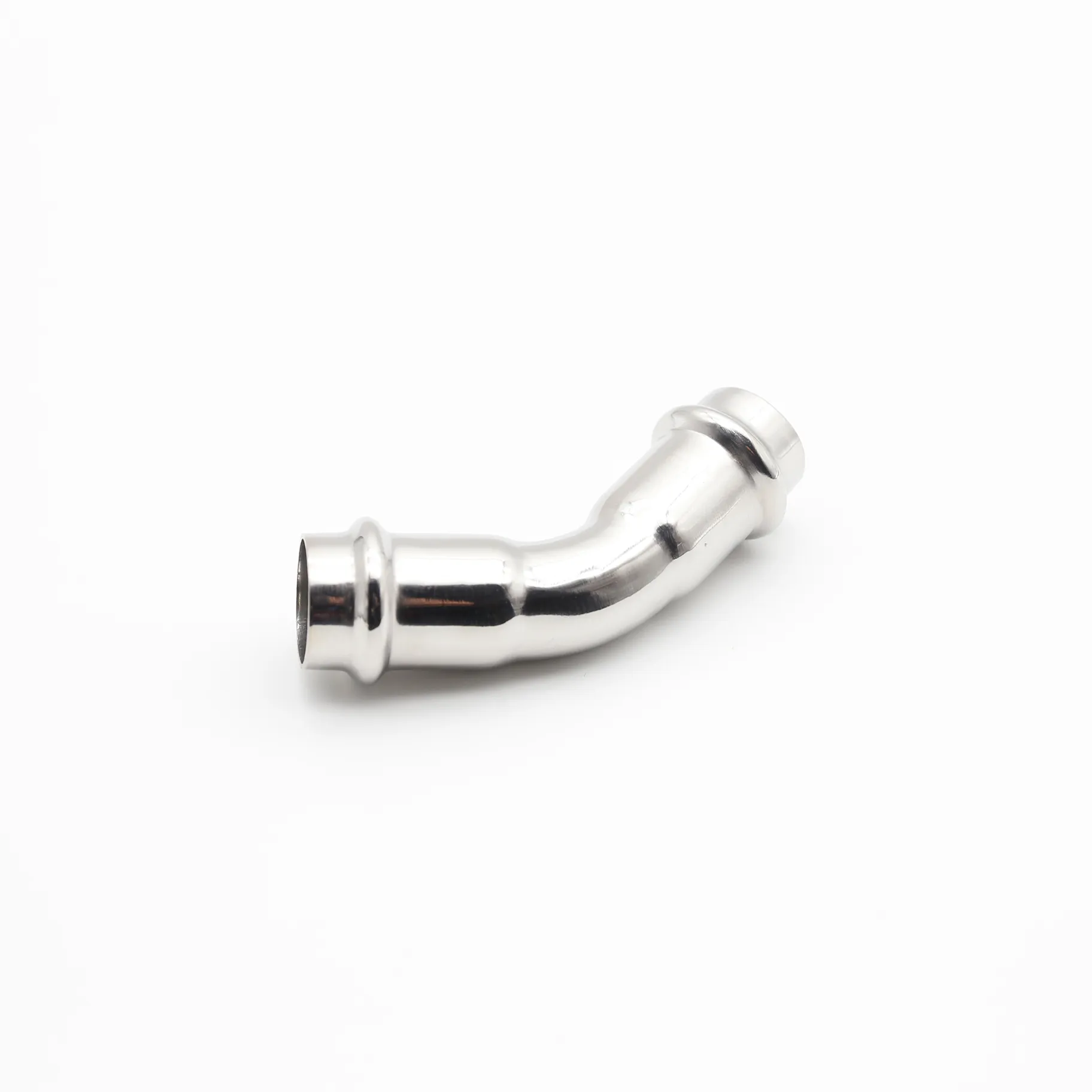

Side view clearly showing the 45-degree angle between the two arms of the elbow.
Close-up, front-facing view into one opening of the 45-degree elbow.

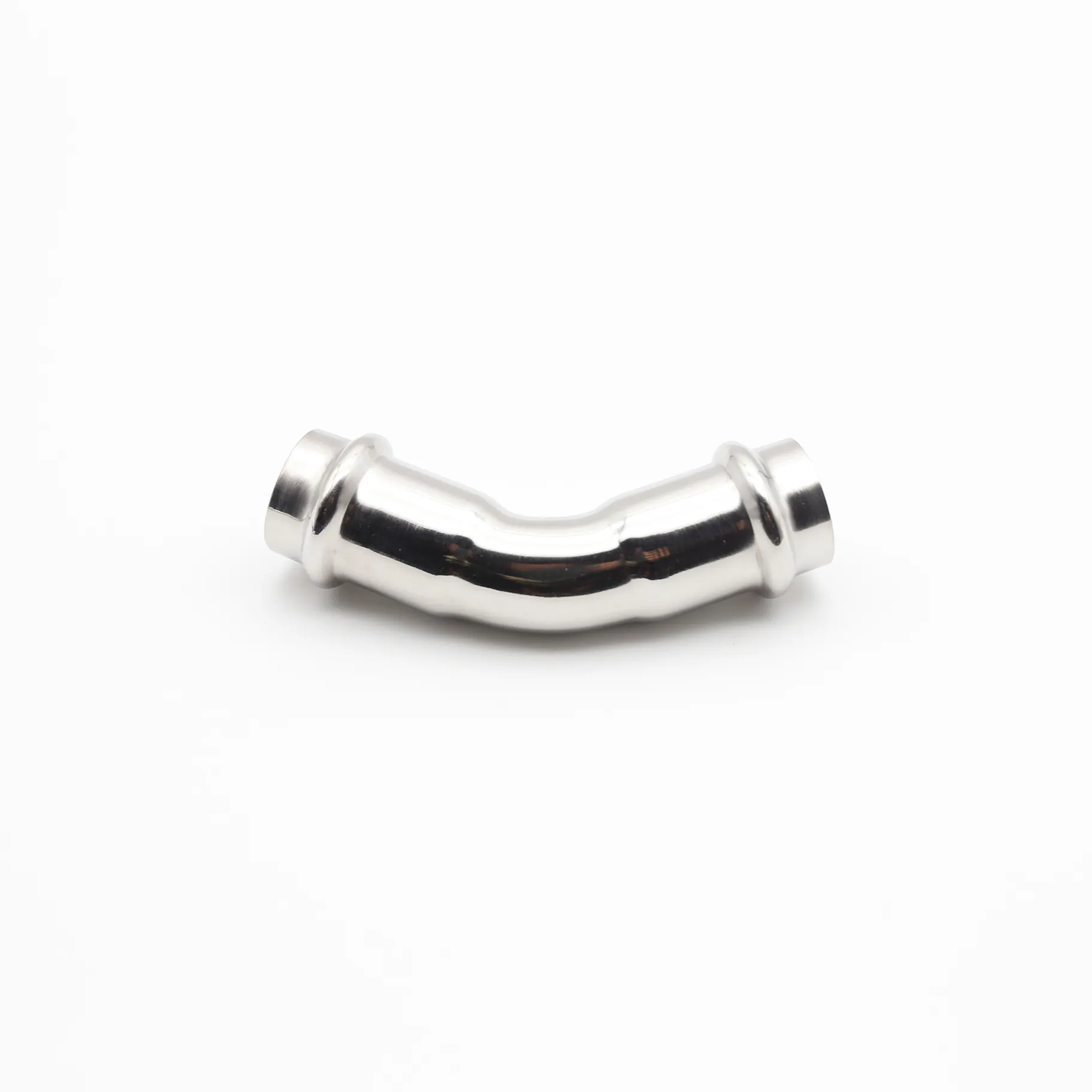

Overhead view of the elbow, showing its characteristic V-shaped silhouette.

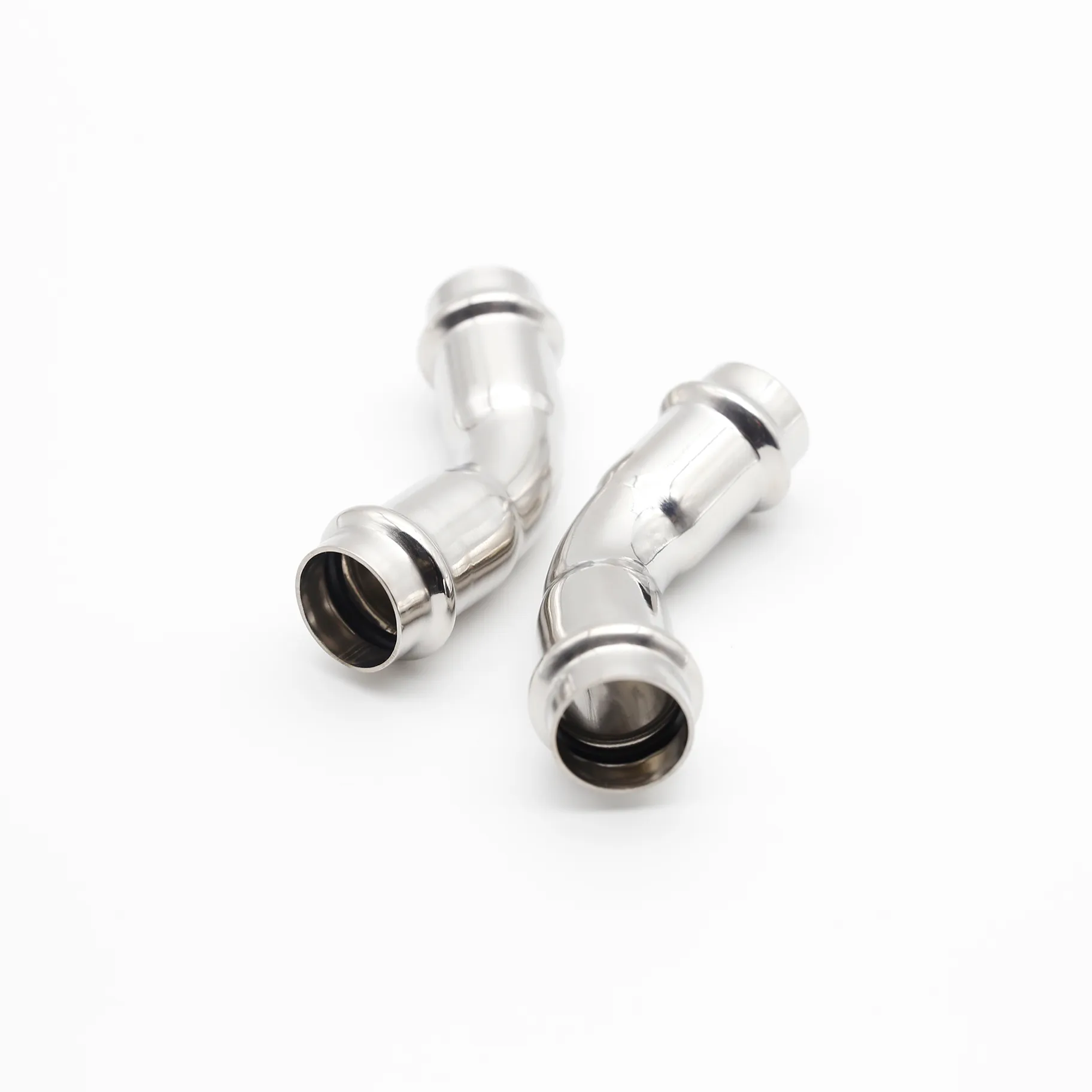

Two identical stainless steel 45-degree elbows placed side-by-side on a white background.

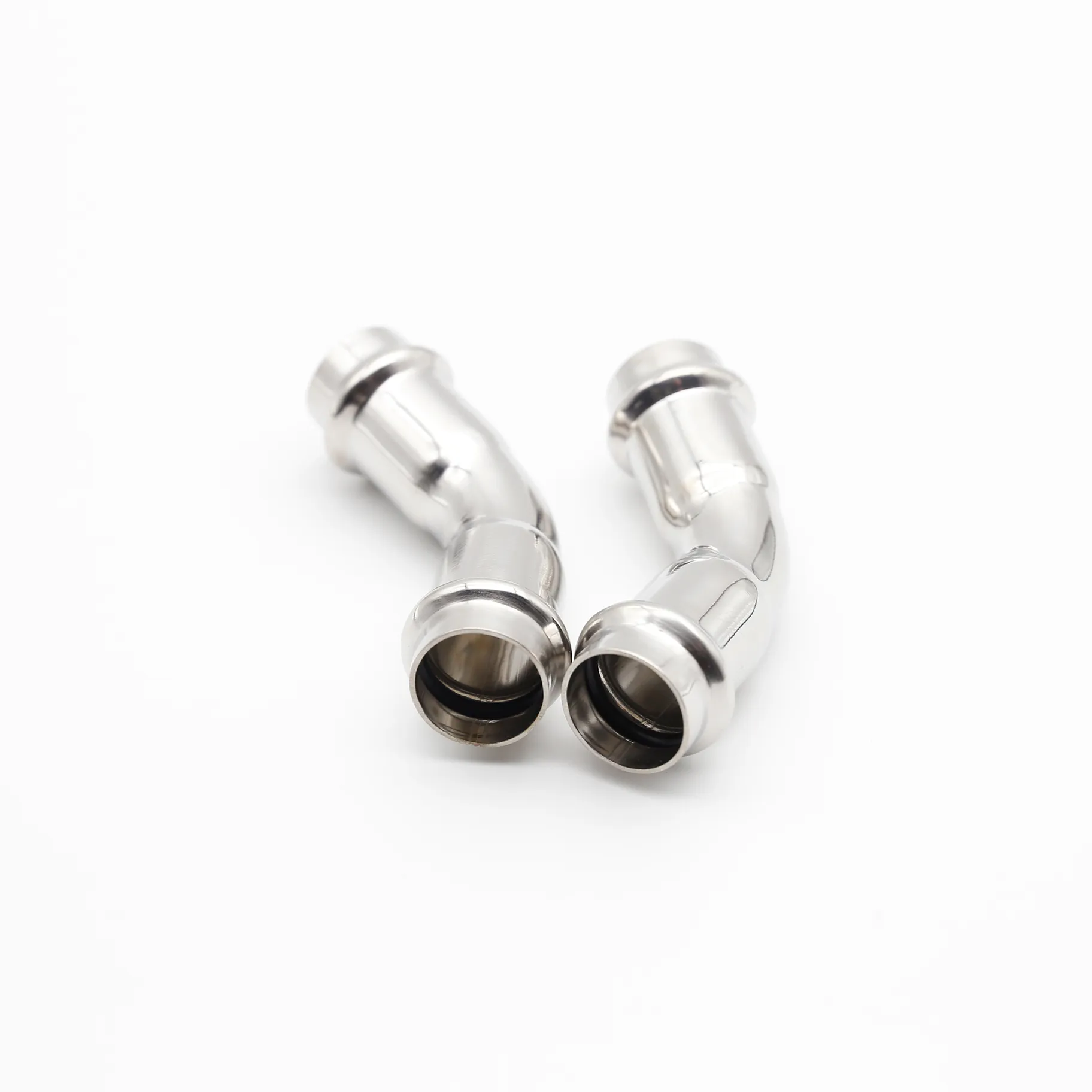

Two 45-degree elbows positioned to illustrate how they can be used together to create a parallel pipe offset.

Stainless Steel Double Press-Fit Fittings 45-Degree Elbow A-Type

Category Tag

  • Optimized Directional Change: Engineered for smooth 45° turns, reducing flow resistance and pressure drop in piping systems compared to sharper angles.

  • Dual Press-Fit Ends (Type A): Both connection ports are identical and designed for permanent press-fit installation, creating a complete, standalone fitting for gradual turns.

  • Reliable Dual-Seal Design: Each end features a precision O-ring seal, activated by the calibrated double-press process to ensure two independent, leak-proof connections.

  • Ideal for Efficient Layouts: Perfect for long pipe runs, navigating around obstacles with minimal space penalty, and creating offset connections in mechanical rooms.

  • Certified Quality: Manufactured from corrosion-resistant 304/316L stainless steel, compliant with GB/T 19228, ISO 15835, and individually hydrostatic tested.

Get Custom Quote

Engineer Smoother Flow with a Gradual 45° Turn

The Stainless Steel Double Press-Fit 45° Elbow (Type A) is the optimal solution for piping layouts that demand efficiency and minimal flow disturbance. As a key component in our Double Press-Fit System Overview, this fitting enables a gentler, 45-degree directional change, effectively reducing turbulence and long-term energy loss in system pumps—a critical consideration in large commercial projects.



Strategic Advantage: The 45-Degree Angle for Performance

While 90° elbows are standard for right-angle turns, the 45° elbow serves distinct and valuable purposes:

  • Reduced Flow Resistance: Offers a hydraulically superior alternative to 90° elbows, minimizing pressure loss, especially in high-flow or long-distance runs.

  • Space-Efficient Routing: Allows for more gradual and often more compact routing around structural elements or other MEP services.

  • Creating Precise Offsets: Two 45° elbows can be used in sequence to create a parallel offset in a pipeline, a common requirement for alignment.



Type A Design: For Complete, Permanent Connections

This “Type A” variant is defined by its two press-fit ends, designed for situations where a complete and permanent 45° turn is needed between two pipe sections. This symmetrical design ensures:

  • Installation Simplicity: No need to differentiate between ends, speeding up the installation process.

  • Uniform Reliability: Both seals benefit from the same rigorous System Pressure & Performance Testing protocol (>1.05 MPa individual test, 2.5 MPa system test), guaranteeing the integrity of the entire fitting.



Cross-section Diagram

Cross-sectional diagram of a 45-degree elbow, cut through the bend to show the internal O-ring sealing grooves at both connection ends.
Sealed for Smooth Flow: Cutaway view reveals the consistent O-ring compression at both ports, ensuring reliability at the angled junction.



Engineered with Premium Materials and Rigorous Standards

  • Material Integrity: Available in grades 304, 304L, 316, and 316L stainless steel, selected for their durability and corrosion resistance in various water qualities.

  • Global Compliance: Manufactured to meet and exceed GB/T 19228.1-2011, ISO 15835, and EN 10312, ensuring suitability for domestic and international specifications.

  • Verified Performance: Every fitting is subject to stringent quality checks, including eddy current testing and flattening tests, ensuring material properties like tensile strength (≥520 MPa) are consistently achieved.



Specification Table

Model Nominal Diameter Dimensions(mm) Dimensions(inch)
SKJ15 DN15 16 0.63
SKJ20 DN20 20 0.787
SKJ25 DN25 25.4 1
SKJ32 DN32 32 1.26
SKJ40 DN40 40 1.57
SKJ50 DN50 50.8 2
SKJ60 DN60 63.5 2.5
SKJ65 DN65 76.1 3
SKJ80 DN80 88.9 3.5
SKJ100 DN100 101.6 4
SKJ125 DN125 133.3 5.25
SKJ150 DN150 159 6.26
SKJ200 DN200 219 8.62



Primary Applications

  • Creating low-resistance turns in commercial and institutional potable water systems.

  • HVAC piping for hydronic heating and chilled water circuits.

  • Industrial process lines where gradual direction changes are required to maintain flow efficiency.

  • Prefabricated pipe assemblies designed for optimized hydraulic performance.

Request Product Quote
