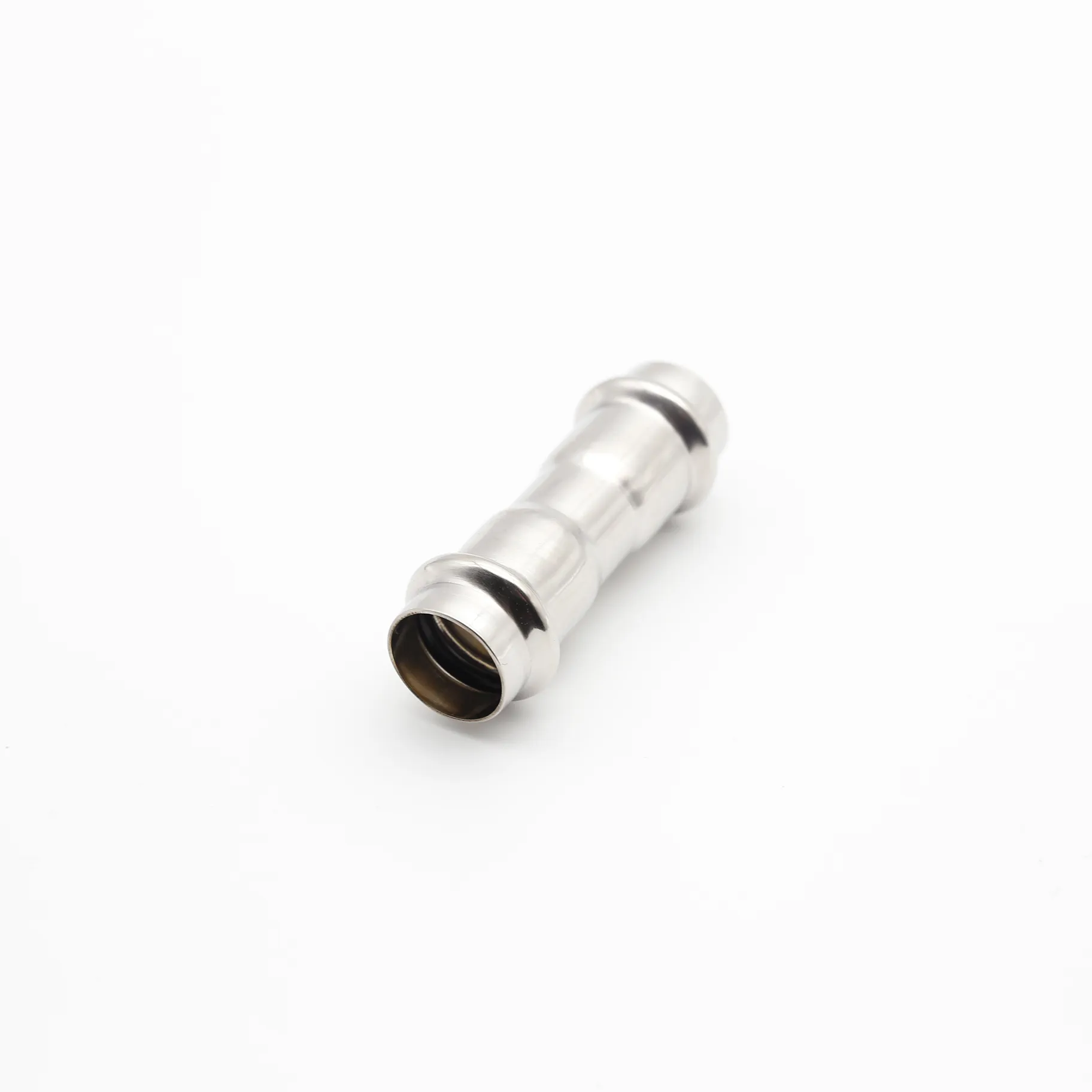

Three-quarter angle view of a stainless steel straight press-fit coupling isolated on a white background.

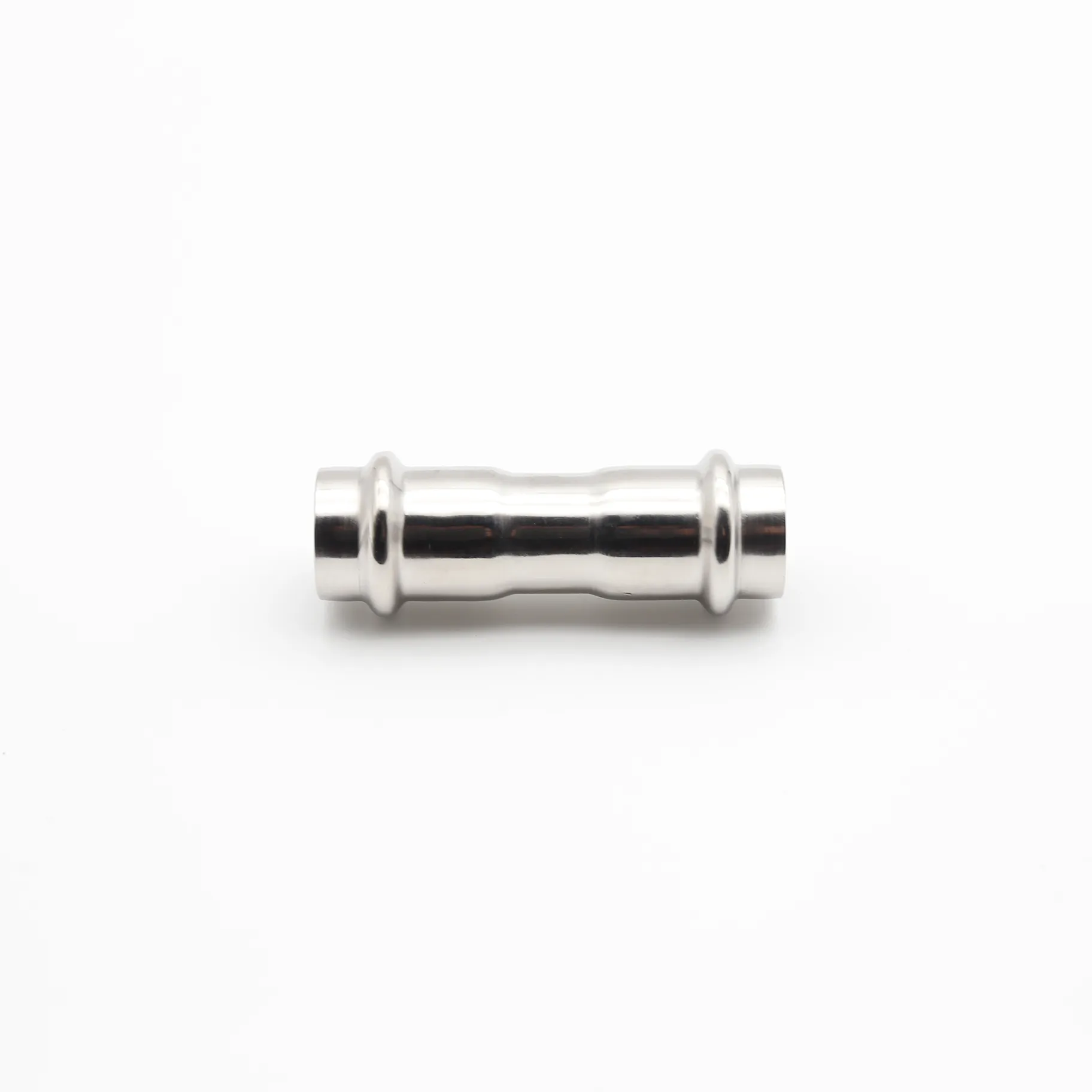

Side profile view of the straight coupling, displaying its full length and cylindrical form on white.

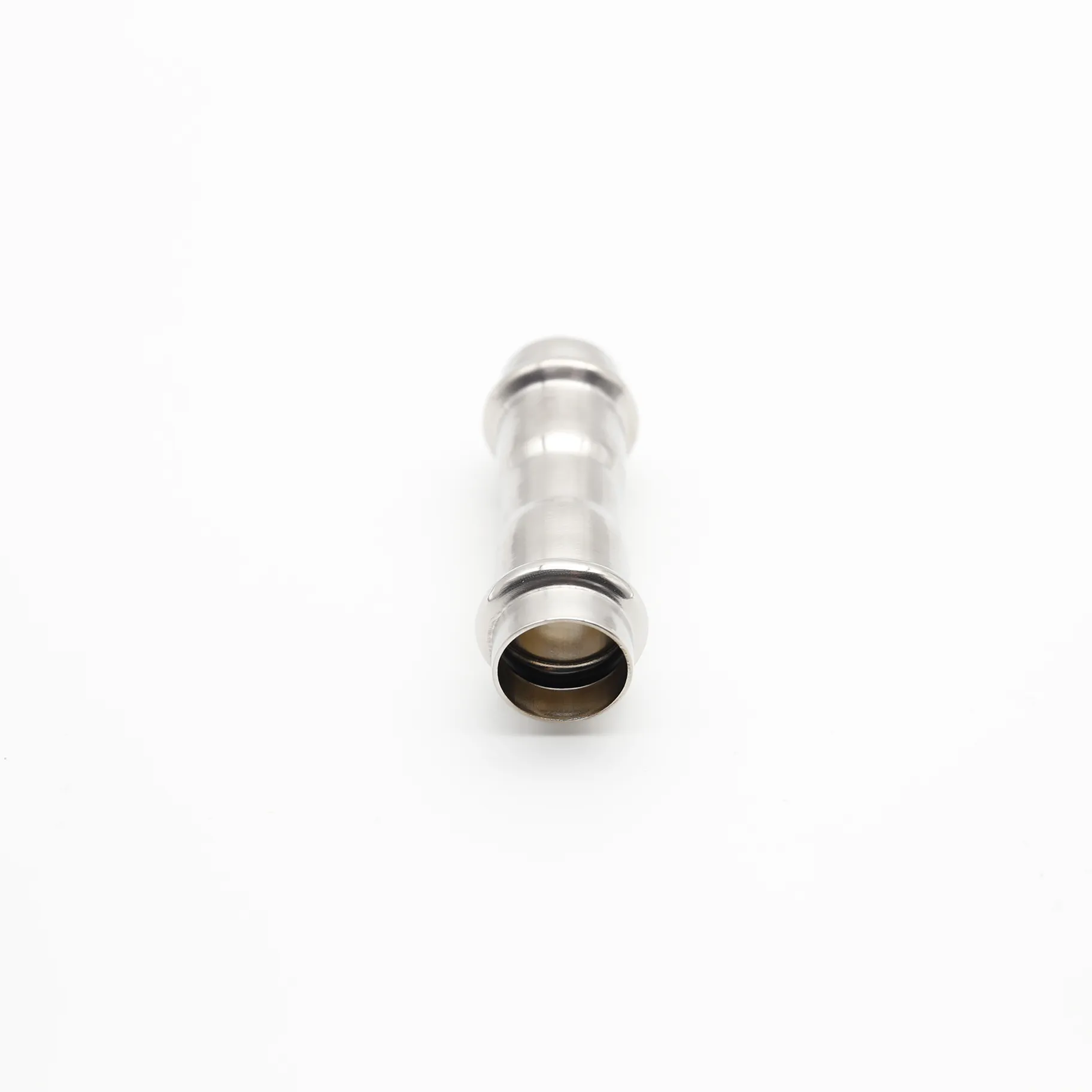

Direct, front-facing view into one end of the coupling, showing the circular opening and internal O-ring groove.
Illustrative view of a coupling with a section cut away to reveal the internal O-ring grooves and sealing chambers.

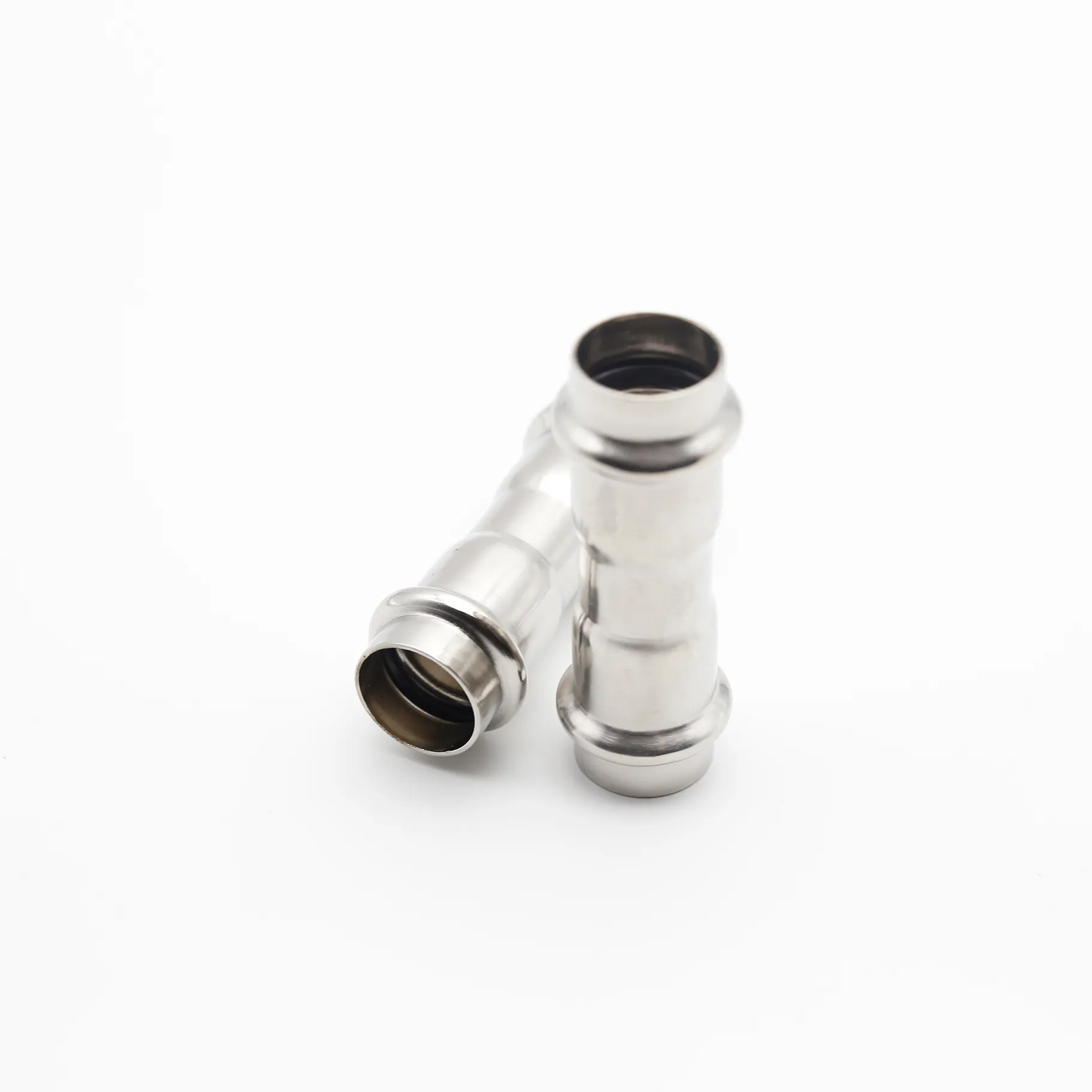

Two identical stainless steel straight couplings placed side-by-side on a white background.

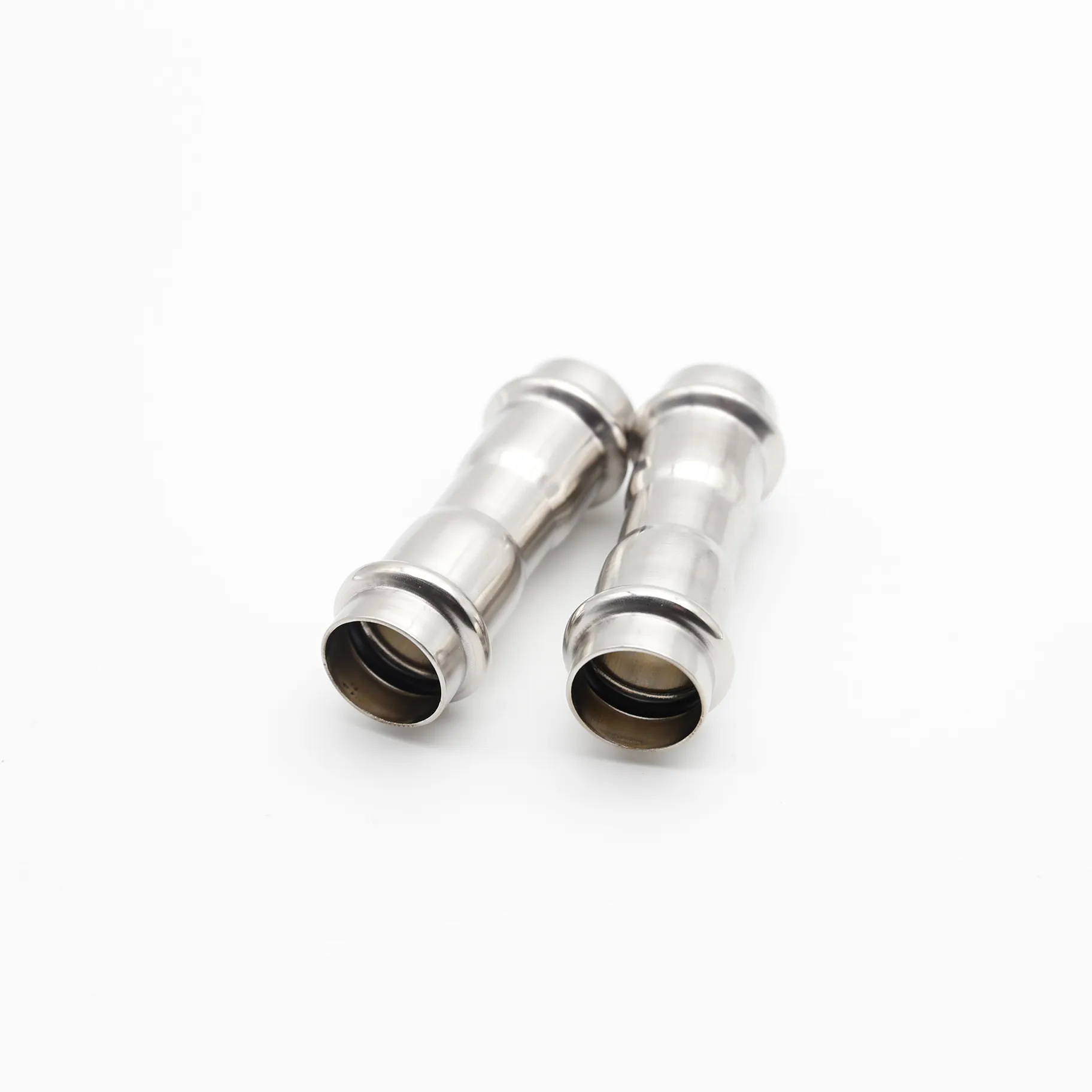

Two straight couplings positioned at staggered angles on a white background, giving a three-dimensional perspective.

Stainless Steel Double Press-Fit Fittings Equal Coupling (Straight Connector)

Category Tag

  • Fundamental Straight-Line Connection: The essential fitting for creating seamless, in-line joins between two pipe ends, ensuring perfect alignment and uninterrupted flow.

  • Core of the Press-Fit System: As the most basic and frequently used component, it embodies the reliability and simplicity of the double press-fit sealing method.

  • Dual-Press Sealing Assurance: Both ends utilize the calibrated double-press action to compress precision O-rings, guaranteeing two independent, leak-proof seals in a single fitting.

  • Individually Validated: Every coupling is factory pressure tested above 1.05 MPa, providing a certified leak-proof guarantee before it reaches the job site.

  • Premium Material & Compliance: Manufactured from 304/316L stainless steel, fully compliant with GB/T 19228, ISO 15835, and other international standards for water and gas.

Get Custom Quote

The Reliable Foundation of Every Press-Fit Piping System

The Stainless Steel Double Press-Fit Equal Coupling is the fundamental building block for extending, repairing, or joining straight sections of pipe. In any Double Press-Fit System Overview, this coupling performs the critical, yet often understated, role of creating a continuous, secure, and hydraulically efficient pipeline. Its simplicity is its strength, representing the most direct application of our trusted O-ring sealing technology.



Why the Double-Press Method is Critical for Straight Connections

While a straight joint may seem undemanding, it must withstand constant axial forces, thermal expansion, and system pressure surges. The double-press mechanism ensures unparalleled reliability:

  • First Press: Secures the fitting and initiates O-ring compression.

  • Second Press: Achieves the precise, calibrated compression depth, guaranteeing the O-ring is fully seated to form a permanent, gas- and liquid-tight seal.
    This two-step process eliminates variability, ensuring that every one of the thousands of couplings used in a project like the Shenzhen Bantian Commercial Plaza Project delivers identical, certified performance.



Engineered for Perfection in Simplicity

  • Bore Alignment: Precision machined to maintain a perfectly smooth and continuous internal diameter, preventing turbulence and minimizing pressure drop across the joint.

  • Optimal Engagement Length: Designed with sufficient socket depth to provide robust mechanical strength against pull-out forces, verified by rigorous [Internal Link: System Pressure & Performance Testing].

  • Material Integrity: Constructed from premium 304, 304L, 316, or 316L stainless steel, offering excellent corrosion resistance for potable water, heating, cooling, and compliant gas systems.

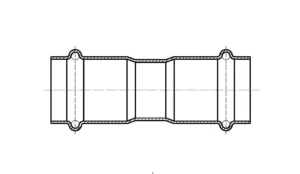

Cross-section Diagram

Cross-sectional diagram of a straight coupling, cut through the center to show pipes inserted from both sides and the O-rings compressed in their grooves at each end.
Dual-End Seal Integrity: This view reveals how a leak-proof seal is independently formed at both connection points within a single coupling.



Uncompromising Quality & Certification

  • Standards Adherence: Manufactured in full conformity with GB/T 19228.1-2011, ISO 15835, and EN 10312, ensuring global acceptance.

  • Stringent Testing: Beyond individual hydrostatic testing, materials are validated through flattening tests, eddy current inspection (GB/T7735 Grade A), and tensile testing (≥520 MPa) to ensure intrinsic quality.



Specification Table

Model Nominal Diameter Dimensions(mm) Dimensions(inch)
SKZ15 DN15 16 0.63
SKZ20 DN20 20 0.787
SKZ25 DN25 25.4 1
SKZ32 DN32 32 1.26
SKZ40 DN40 40 1.57
SKZ50 DN50 50.8 2
SKZ60 DN60 63.5 2.5
SKZ65 DN65 76.1 3
SKZ80 DN80 88.9 3.5
SKZ100 DN100 101.6 4
SKZ125 DN125 133.3 5.25
SKZ150 DN150 159 6.26
SKZ200 DN200 219 8.62



Applications

  • Extending straight pipe runs in commercial and residential plumbing systems.

  • Making repairs or modifications within existing pipelines.

  • Connecting pipe spools in prefabricated assemblies for fast on-site installation.

  • Serving as the primary connector in potable water, HVAC, industrial, and compliant gas distribution networks.
