The Ultimate Branch Connection Solution with Unmatched Flexibility

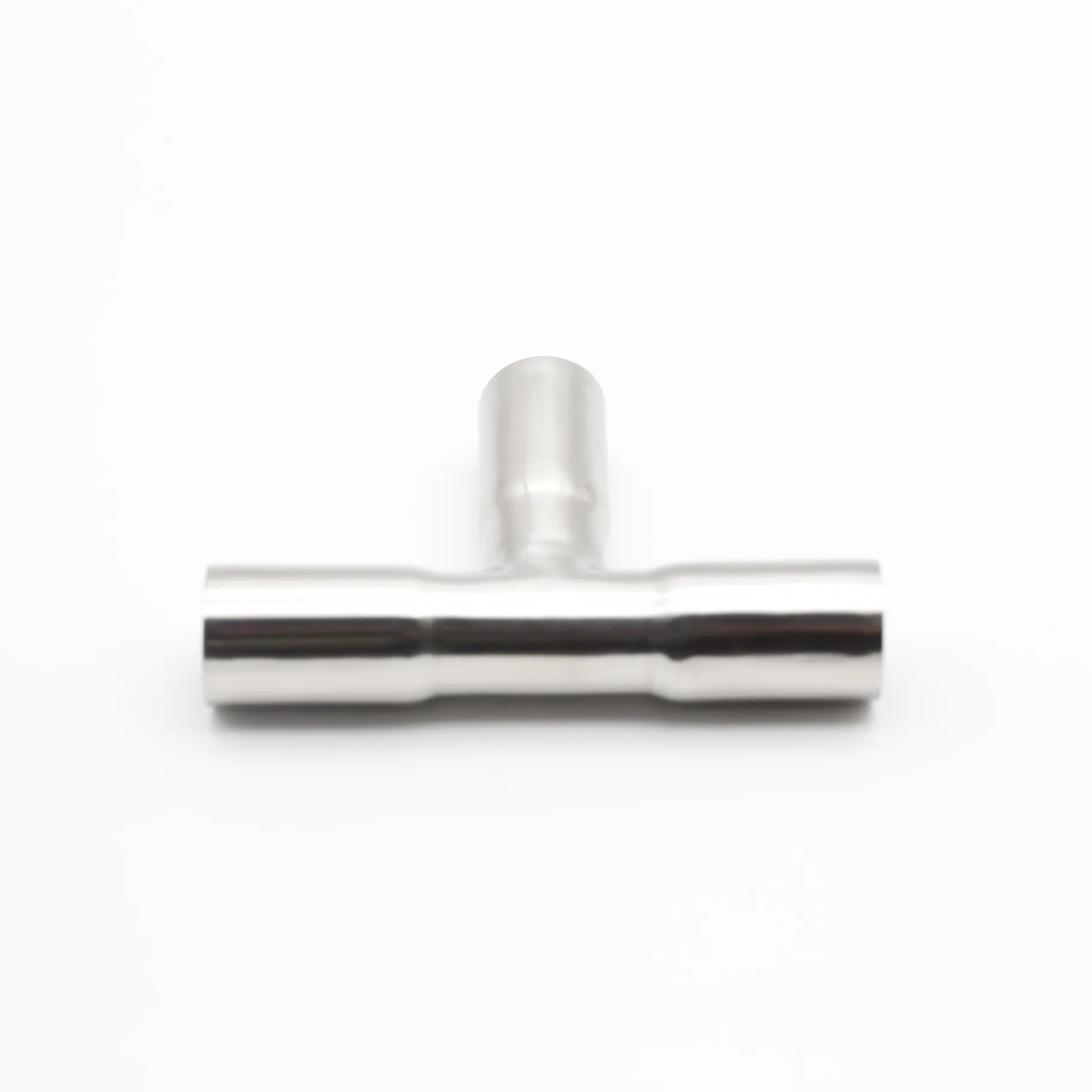

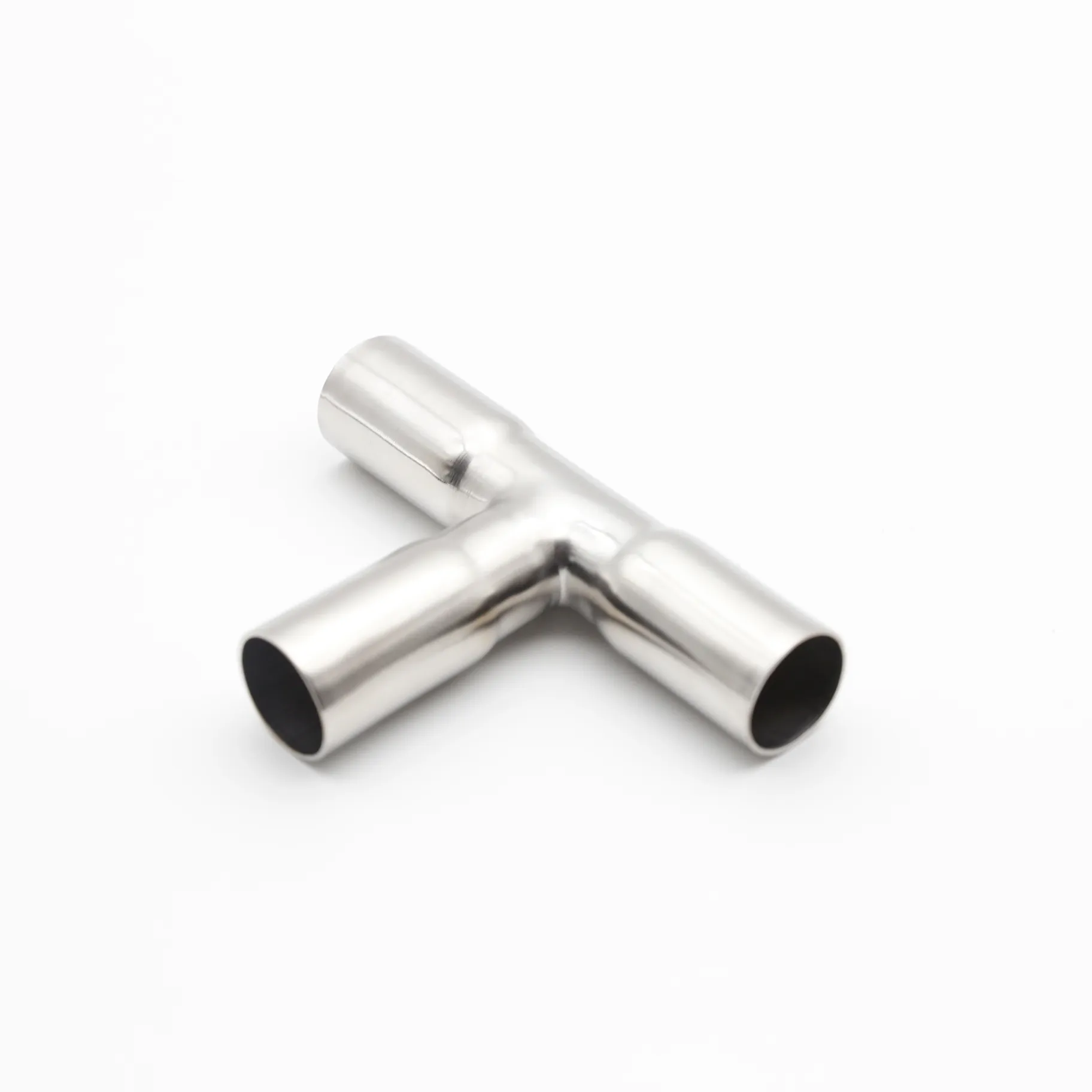

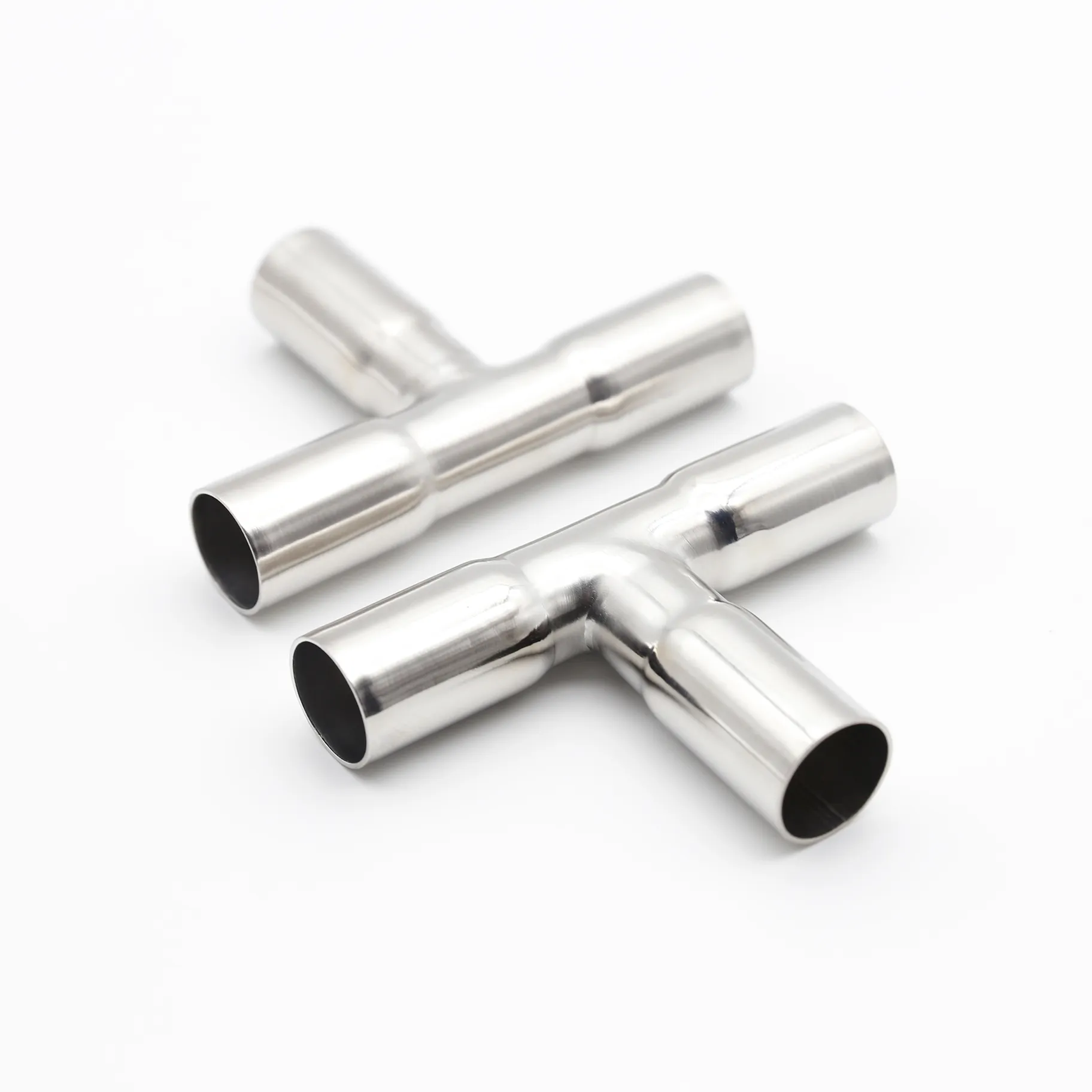

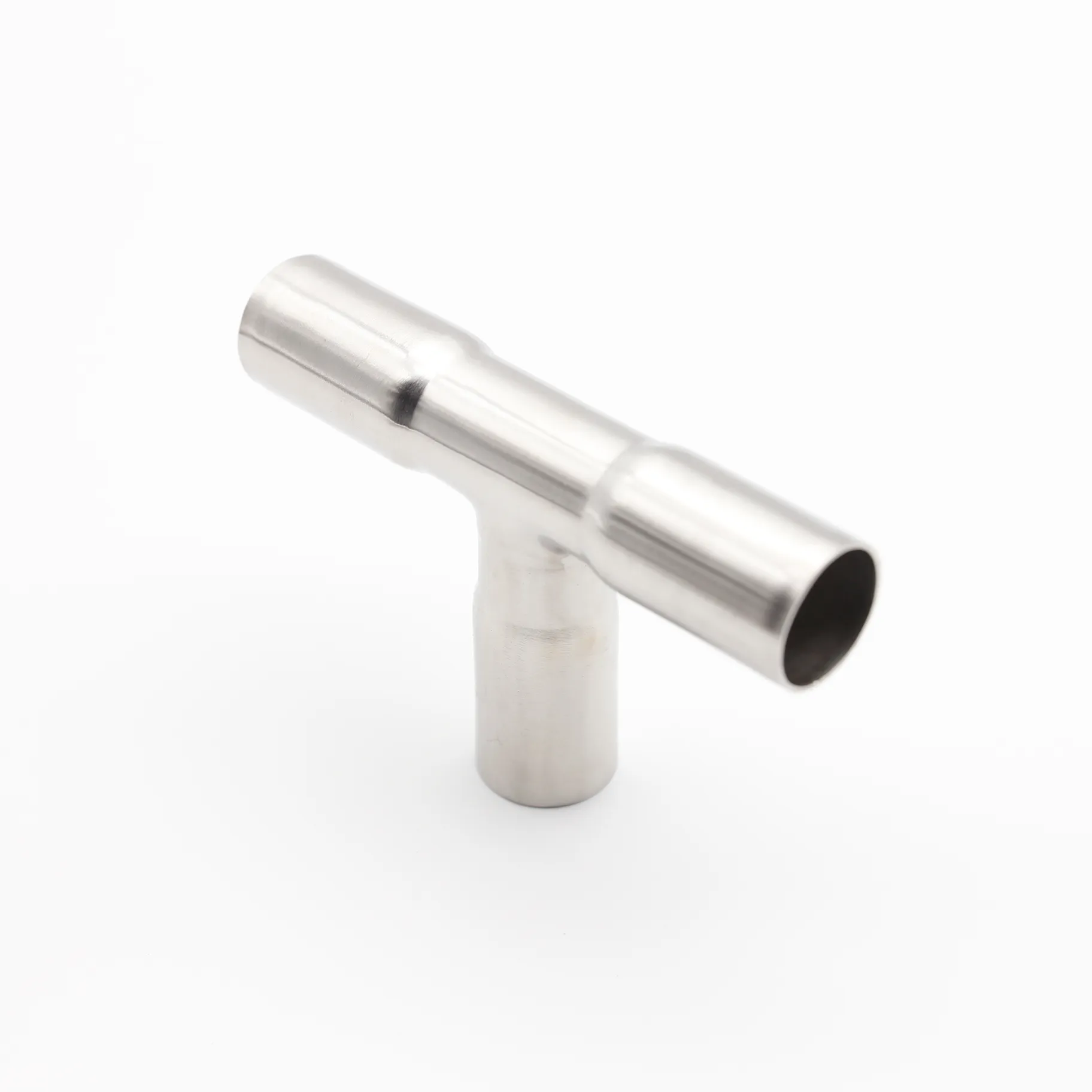

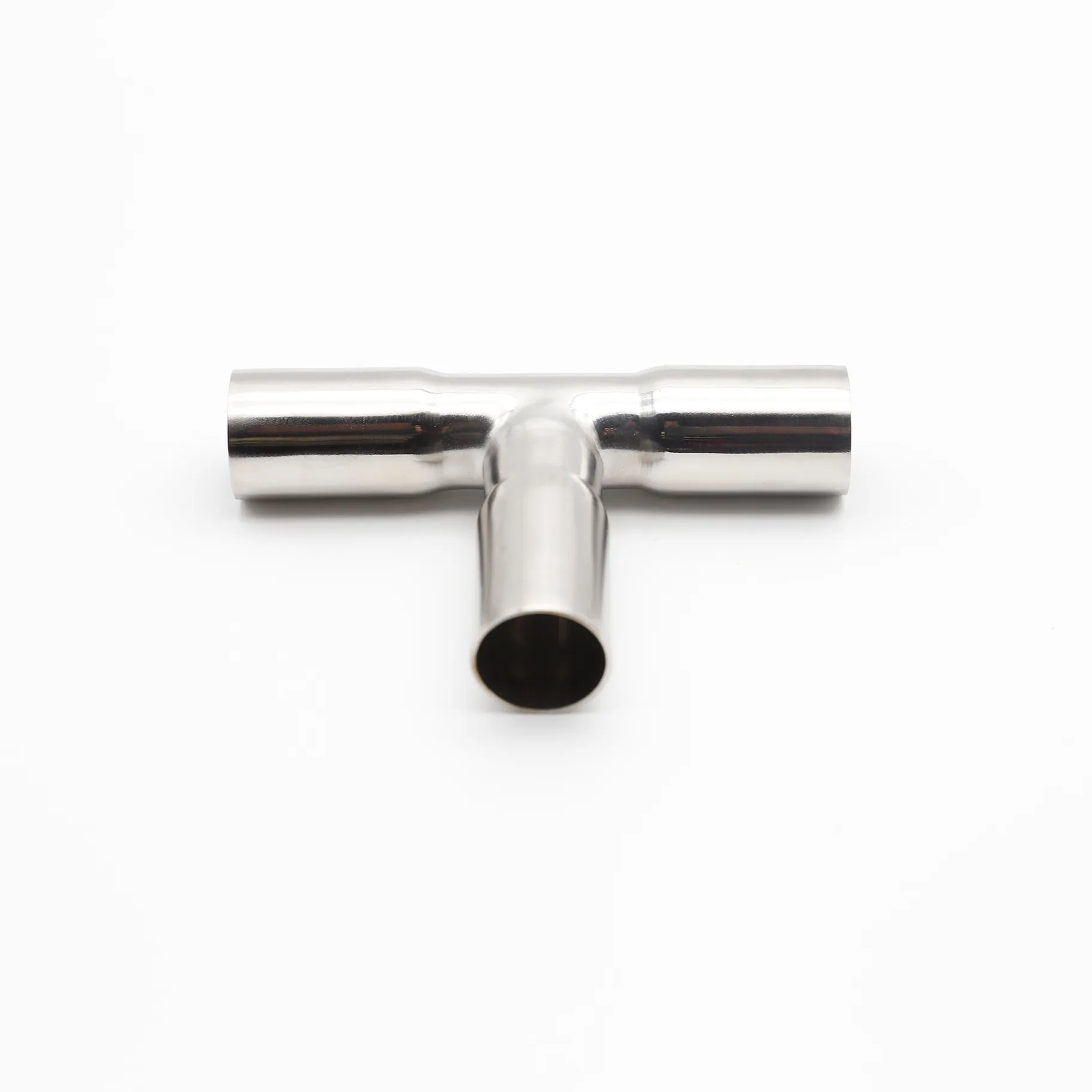

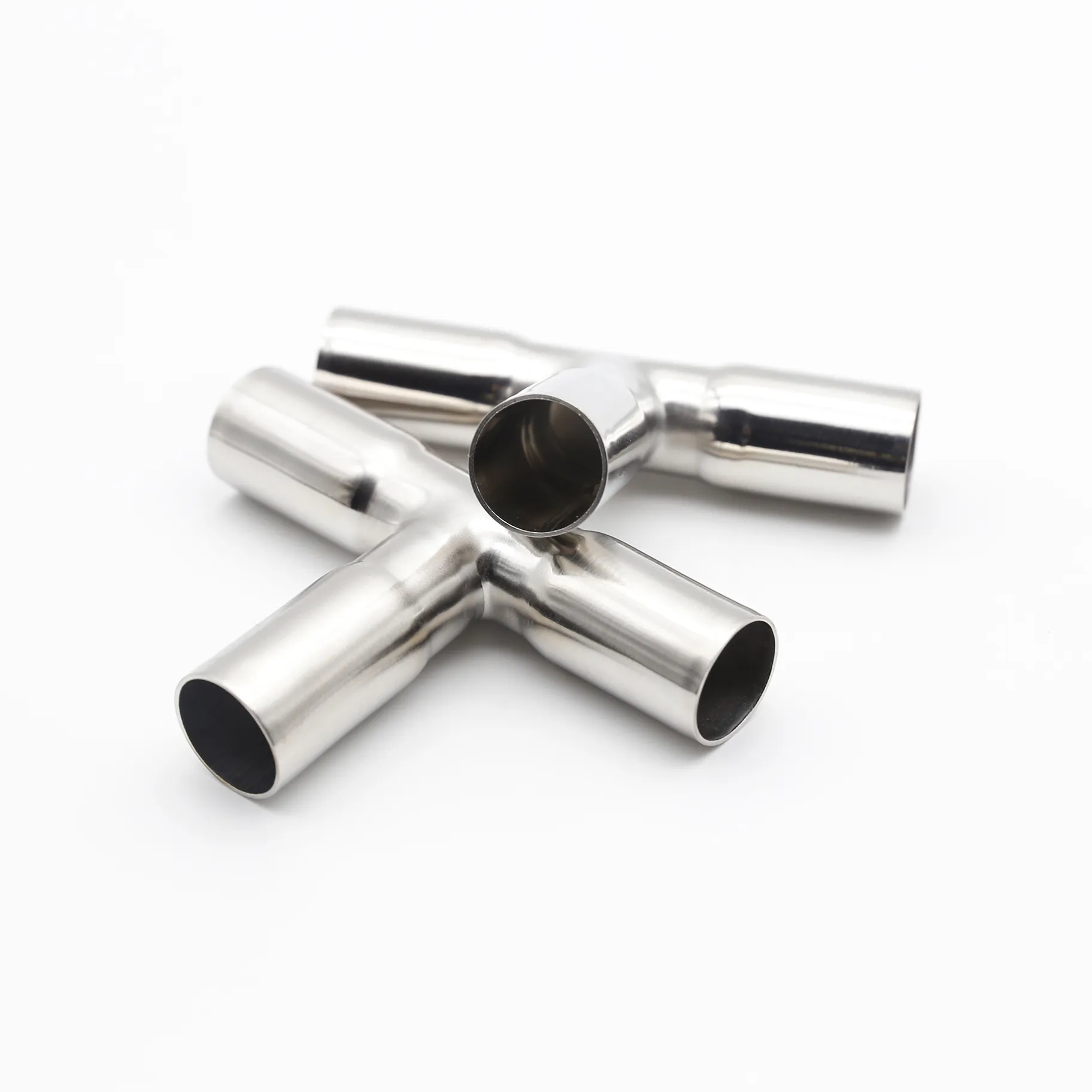

Our Stainless Steel Threaded Press-Fit Equal Tee is engineered to deliver both performance and versatility. As a core component of our advanced Threaded Press-Fit Pipeline System, this tee is designed not only for superior performance within its native system but also for seamless integration into hybrid piping designs.
Key Advantage: Socket Weld Compatibility

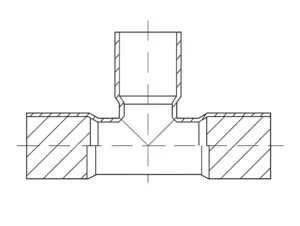

A critical feature of this tee is its dimensional interchangeability with standard Socket Weld (SW) fittings. This design intelligence allows for unparalleled flexibility:
-
System Integration: Enables direct replacement or combination with SW tees in existing or new systems without requiring adapters or design changes.
-
Installation Flexibility: Provides contractors the freedom to choose the connection method (press-fit or welding) on a per-joint basis, depending on site access, tool availability, or application requirements.
-
Inventory Simplification: Reduces the need to stock separate, dimensionally different fittings for press-fit and welded systems.
Engineered for Certified, Long-Term Performance
Beyond its compatibility, the tee excels through its core technology. The integration of anaerobic adhesive within precision-machined threads creates a multi-barrier seal. This synergy is the foundation of the system’s independently 70-Year Service Life Certification, ensuring a level of long-term reliability that far surpasses conventional mechanical-only fittings.
Robust Construction & Universal Compliance
CNC-machined from premium material specifications stainless steel (304/316 series), this tee ensures corrosion resistance for demanding applications from potable water to industrial fluids. It is manufactured to comply with a comprehensive set of standards that validate its safety and performance for global projects, including gas systems and general plumbing.
Key Specifications & Dimensional Data
| Model | Nominal Diameter | Dimensions(mm) | Dimensions(inch) |
| T15 | DN15 | 16 | 0.63 |
| T20 | DN20 | 20 | 0.787 |
| T25 | DN25 | 25.4 | 1 |
| T32 | DN32 | 32 | 1.26 |
| T40 | DN40 | 40 | 1.57 |
| T50 | DN50 | 50.8 | 2 |
| T60 | DN60 | 63.5 | 2.5 |
| T65 | DN65 | 76.1 | 3 |
| T80 | DN80 | 88.9 | 3.5 |
| T100 | DN100 | 101.6 | 4 |
| T125 | DN125 | 133.3 | 5.25 |
| T150 | DN150 | 159 | 6.26 |
| T200 | DN200 | 219 | 8.62 |
Industry Applications
-
Potable Water Systems (Hot & Cold)
-
Industrial & Process Piping
-
Compatible Hybrid Systems (Press-Fit & Socket Weld)
-
Gas Distribution (Where compliant with DBJ51/T 023-2014)
-
Chemical, Pharmaceutical, and Food & Beverage Lines
