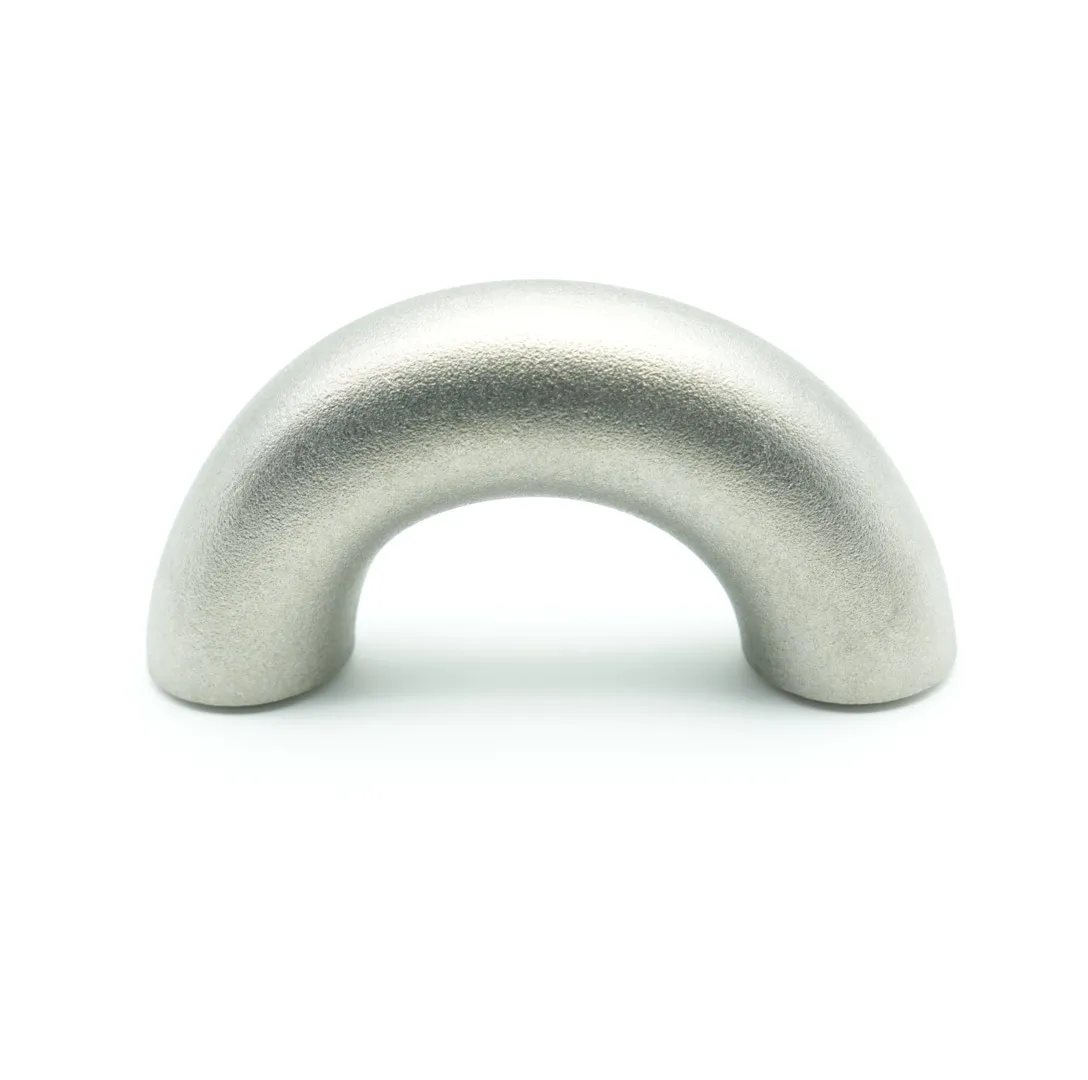

Stainless steel return bend 180 degree butt-weld fitting

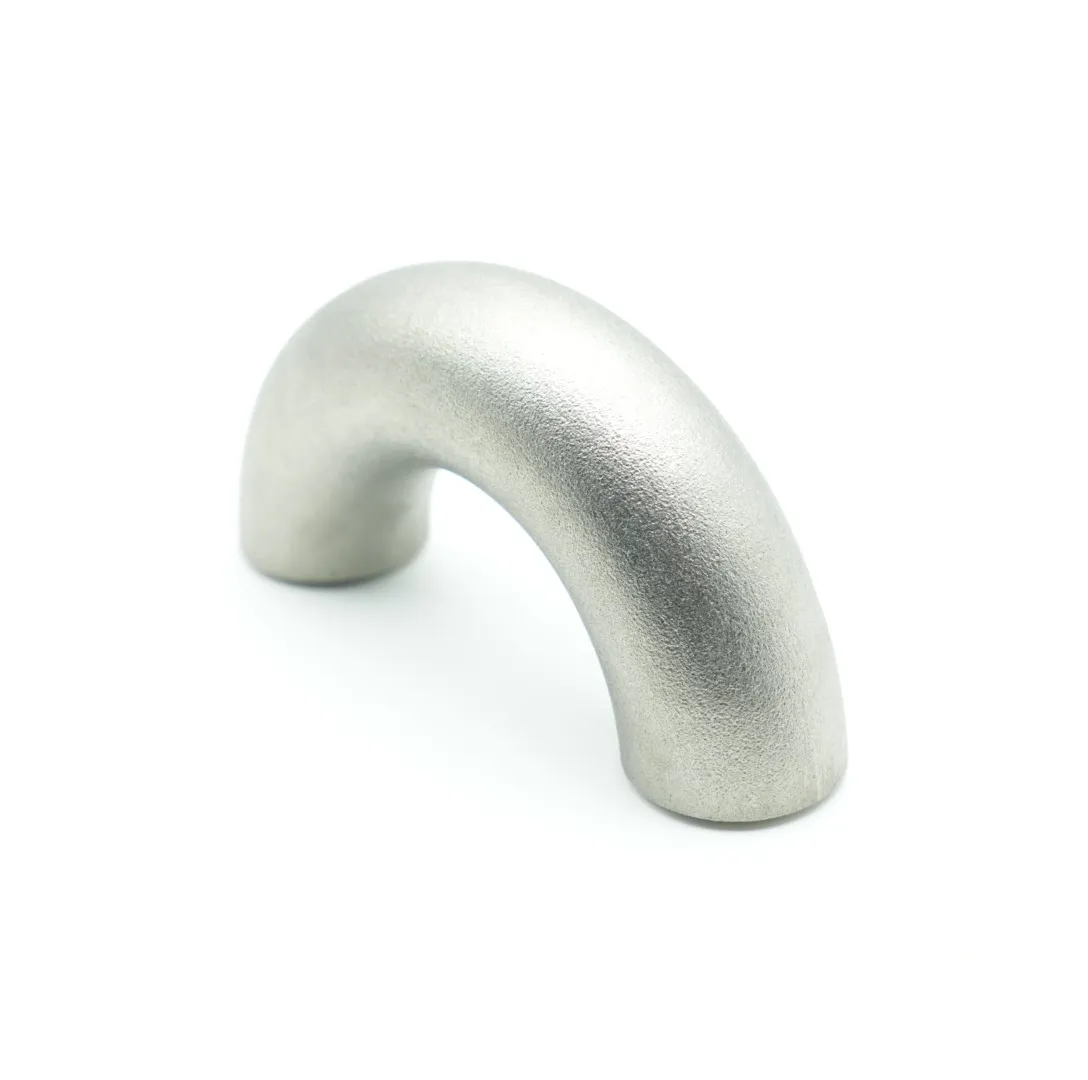

Side profile view of a 180° return bend showing the parallel legs and center‑to‑center dimension

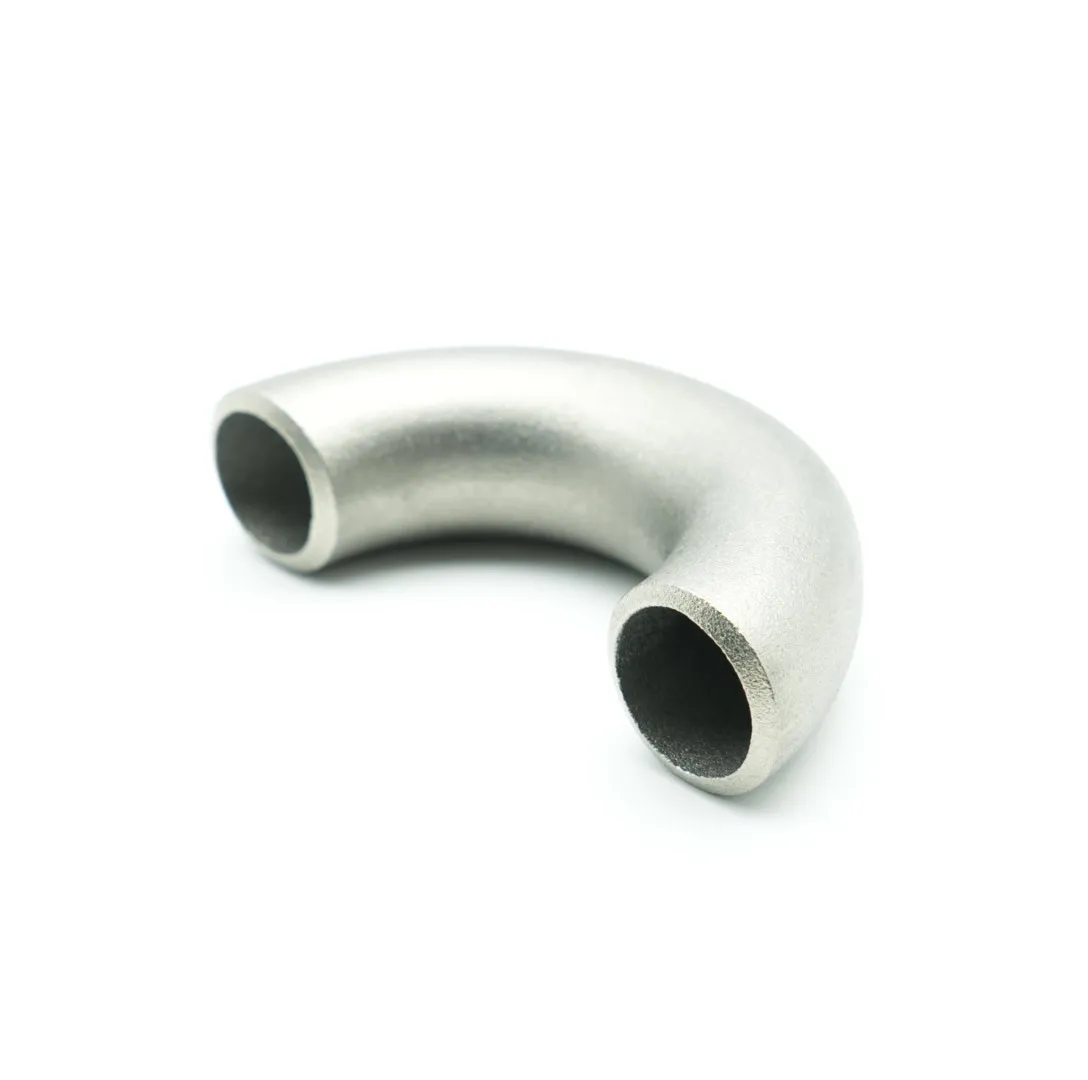

Overhead view of a 180° return bend showing the U‑shaped silhouette

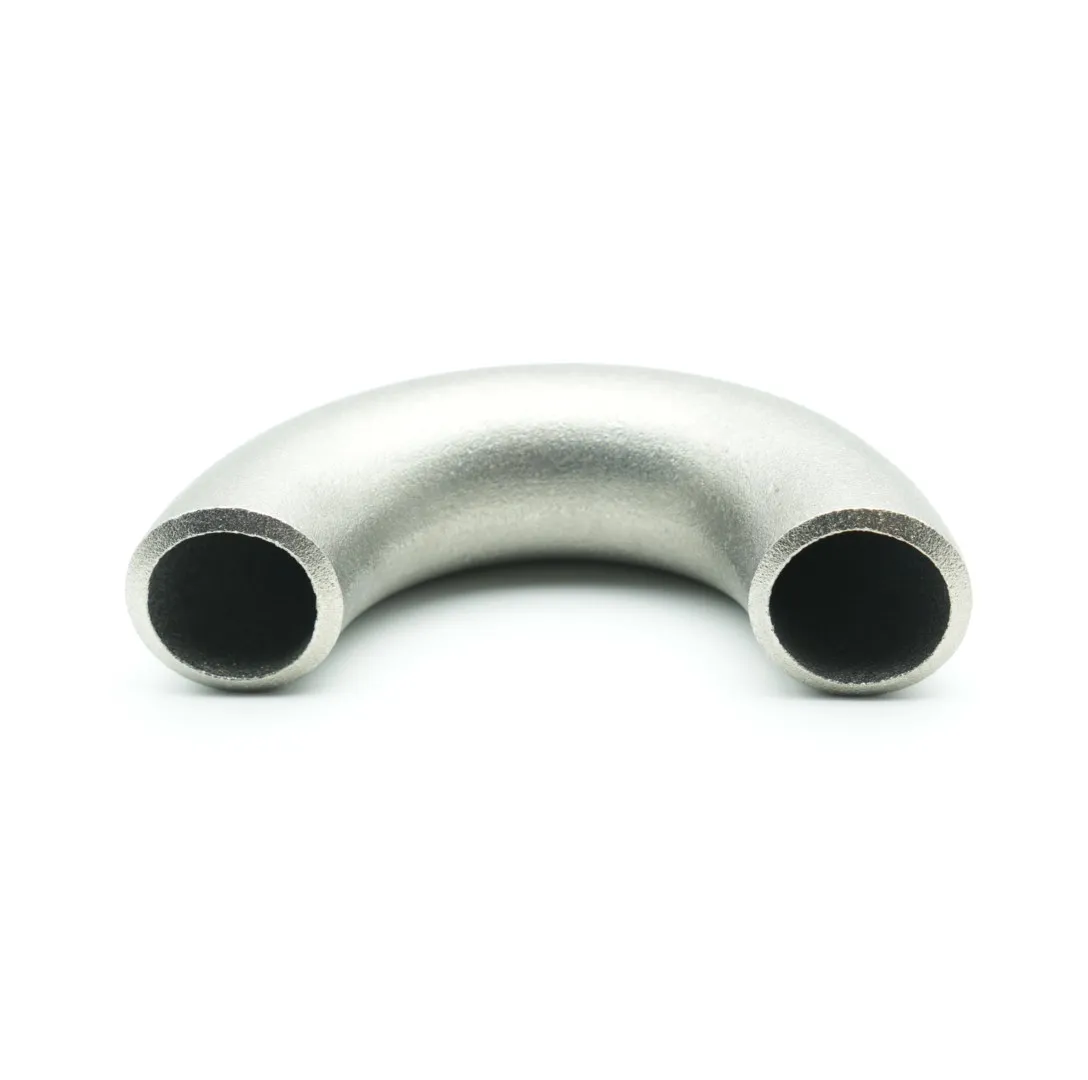

Direct view into one leg of a 180° return bend showing the circular bore and beveled end preparation

Stainless Steel Butt Weld 180° Return Bend LR/SR ASME B16.9

Category Tags ,

  • Compact U‑Turn Flow Reversal: Designed for 180° directional changes in piping systems, ideal for heat exchangers, boilers, and space‑constrained layouts where a tight return is required.

  • Two Radius Options: Available in long radius (smoother flow, less pressure drop) and short radius (compact footprint for tight spaces) configurations.

  • Full Size & Pressure Range: Covers DN10 to DN2000 with wall thicknesses Sch10 to XS, pressure classes PN0.25–1.0MPa, and Class150–3000LB.

  • Multiple Material Options: Manufactured from 304/L, 316/L, and Duplex 2205/2507 stainless steel for corrosion resistance across diverse applications.

  • Global Standard Compliance: Produced to ASME B16.9, GB/T12459, DIN 2615, and other major international specifications.

Get Custom Quote

The Reliable Solution for 180° Flow Reversal

The stainless steel return bend is a butt-weld fitting designed to reverse pipeline flow by 180° in a compact U-shaped layout. Nonleak supplies long-radius and short-radius return bends for heat exchangers, boiler coils, steam systems, HVAC circuits and space-limited mechanical layouts. In addition, the product can be manufactured in 304/304L, 316/316L and duplex stainless steel according to project requirements.

As part of our butt-weld fittings range, this 180° return bend helps engineers create a clean U-turn connection where two standard elbows may take more space. For matching 45° and 90° fittings, you can also review our stainless steel butt-weld elbow products.



Long vs. Short Radius Stainless Steel Return Bend

Choosing the correct stainless steel return bend depends on available space, pressure-drop requirements and equipment layout. In general, a long-radius return bend provides smoother flow and lower resistance. However, a short-radius return bend works better when the installation area is limited.

Type Description Best Application
Long Radius 180° Center‑to‑center dimension = 1.5 x NPS (or larger) Heat exchangers, where smoother flow and lower pressure drop are prioritized
Short Radius 180° Center‑to‑center dimension = 1.0 x NPS Compact equipment, skid‑mounted packages, tight mechanical rooms



Engineering Features for Butt-Weld Return Bends

  • Seamless or Welded Construction: Available in seamless or welded construction according to size, wall thickness and project requirements.

  • Consistent Wall Thickness: Precision forming helps maintain uniform wall thickness through the U-shaped bend.

  • Smooth Internal Surface: A smooth bore supports stable flow and easier cleaning in process piping systems.

  • Beveled Ends: Standard butt-weld end preparation supports efficient field welding and installation.



Materials Engineered for Extreme Environments

Material Grade Key Properties Typical Applications
304/304L Excellent corrosion resistance, good formability General chemical, food processing, water treatment
316/316L Superior chloride resistance, higher strength Marine, pharmaceutical, coastal facilities
Duplex 2205 Twice the yield strength of 316L, excellent SCC resistance Offshore platforms, desalination, sour service
Duplex 2507 Super duplex, extreme corrosion and pitting resistance Highly aggressive chemical, high‑chloride environments



Global Standard Compliance

Nonleak manufactures stainless steel return bend products according to project specifications and applicable butt-welding fitting standards, including ASME B16.9.

All return bends are manufactured and tested to meet or exceed:

  • ASME B16.9: Factory-made wrought buttwelding fitting dimensions

  • ASTM A403/A403M: Wrought austenitic stainless steel pressure piping fittings

  • DIN / ISO / JIS options: Available according to project requirements

  • SH3408 / SH3409 / SH3410 – Petrochemical Industry Standards

  • HG/T21635, DL/T695, SY/T0510 – Industry-Specific Standards



Cross-section Diagram

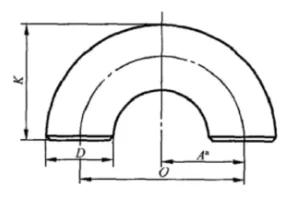

Technical cutaway diagram of a 180° long radius return bend illustrating consistent wall thickness through the U‑turn
Precision U‑Bend Geometry: Cross-section reveals uniform wall thickness and smooth internal radius for optimal flow reversal



Specification Table

Nominal Pipe Size (NPS) Outside Diameter At Bevel D (mm) Long Radius Elbow(mm) Short Radius Elbow(mm)
Center to Center
(O)		 Back to Face
(K)		 Center to Center
(O)		 Back to Face
(K)
1/2 21.3 76.2 47.8 – –
3/4 26.7 76.2 50.8 – –
1 33.4 76.2 55.6 50.8 41.1
1-1/4 42.2 95.2 69.8 63.5 52.3
1-1/2 48.3 114.3 82.6 76.2 62
2 60.3 152.4 106.4 101.6 81
2-1/2 73 109.5 131.8 127 100.1
3 88.9 228.6 158.8 152.4 120.7
3-1/2 101.6 266.7 184.2 177.8 139.7
4 114.3 304.8 209.6 203.2 158.8
5 141.3 381 261.9 254 196.9
6 168.3 457.2 312.7 304.8 236.5
8 219.1 609.6 414.3 406.4 312.7
10 273.1 762 517.7 508 390.7

For complete dimensional data for all sizes (DN10–DN600), download our Butt-Weld Return Bend Technical Documentation.



Key Applications

  • Heat Exchangers: U‑tube bundles, hairpin sections

  • Boilers & Steam Systems: Coils, superheater tubes

  • Chemical Processing: Reactor coils, jacketed piping

  • Power Generation: Condenser circuits, cooling coils

  • HVAC: Chilled water coils, heating coils

  • Food & Beverage: Sanitary heat exchanger circuits

  • Pharmaceutical: Sterile process loops



Quality Assurance & Testing

  • Material Traceability: Mill certificates provided for all raw materials

  • Dimensional Inspection: 100% inspection to ASME B16.9 / GB/T12459 tolerances

  • Non-Destructive Testing: RT/UT/PT/MT available upon request

  • Mechanical Testing: Tensile strength, hardness, flattening tests per batch

  • Chemical Analysis: Verification of material composition

  • Hydrostatic Testing: Available upon customer request



Custom Options

  • Special Materials: Other grades available upon request

  • Non-Standard Dimensions: Custom bend radii and center‑to‑center distances

  • End Preparation: Beveled ends standard; special preparations available

  • Marking: Laser marking per customer specification
