Stainless steel butt weld cross equal and reducing type ASME B16.9

Stainless Steel Butt Weld Cross Equal & Reducing Type ASME B16.9

Category Tag

This stainless steel butt weld cross is designed for four-way branch connections in ASME B16.9 industrial piping systems. It is available in equal cross and reducing cross configurations, so engineers can match pipe size, flow distribution and layout requirements more easily.

  • Four-Way Flow Distribution: Engineered for creating perpendicular intersections in piping systems – available in equal (all four ports same size) and reducing configurations for complex manifold and grid layouts.

  • Full Size & Pressure Range: Covers DN10 to DN2000 with wall thicknesses Sch10 to XS, pressure classes PN0.25–1.0MPa, and Class150–3000LB.

  • Multiple Material Options: Manufactured from 304/L, 316/L, and Duplex 2205/2507 stainless steel for corrosion resistance across diverse applications.

  • Global Standard Compliance: Produced to ASME B16.9, GB/T12459, DIN 2615, and other major international specifications.

  • Critical Junction Integrity: Reinforced design ensures structural strength at the four-way intersection point under high pressure and temperature.

Get Custom Quote

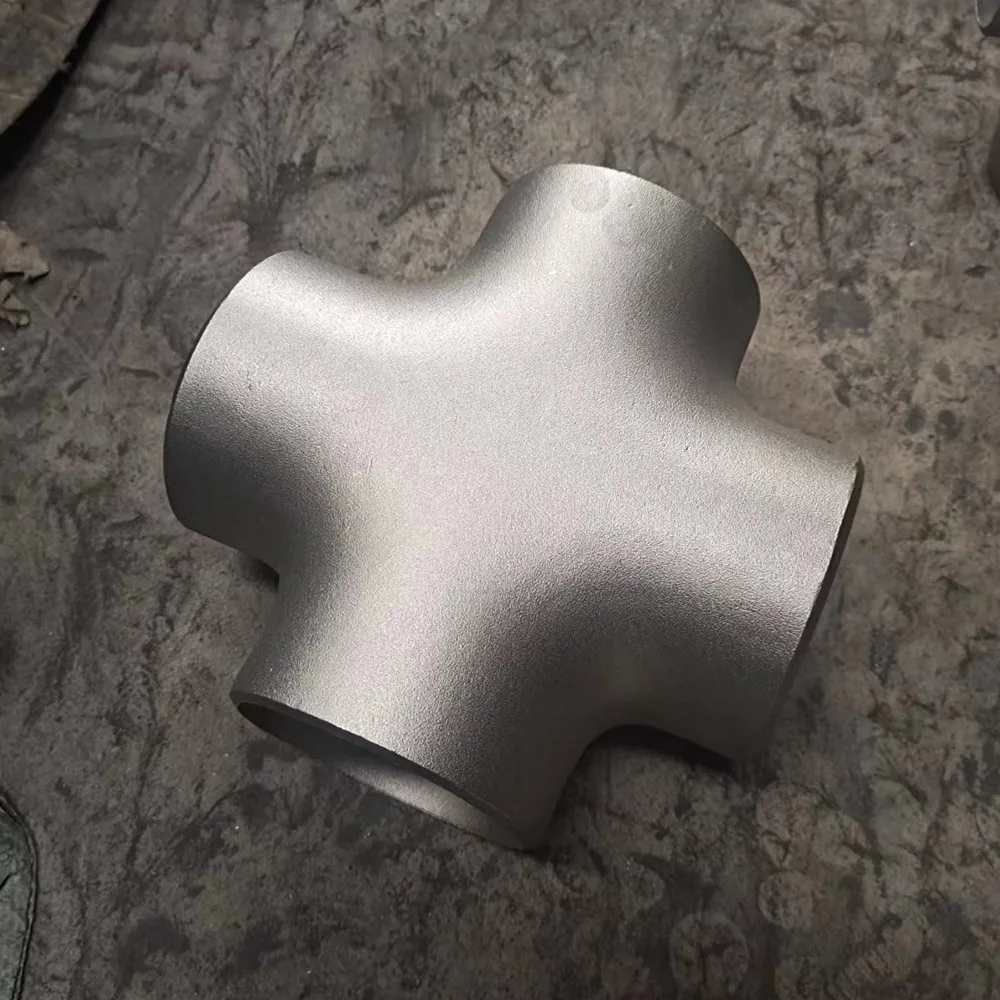

Stainless Steel Butt Weld Cross for Complex Piping Networks

A stainless steel butt weld cross creates a four-way branch connection for complex industrial piping networks. It allows one main pipeline to connect with two branch directions, helping engineers distribute flow, combine lines or arrange multi-directional pipe layouts.

In addition, butt-weld construction creates a continuous welded connection after installation, making the cross suitable for high-pressure, high-temperature or corrosive media applications.



Equal vs. Reducing Cross: Understanding the Configuration

Cross configuration should match the main pipe size, branch size and flow distribution requirements. Therefore, equal cross and reducing cross fittings serve different piping layouts.

Type Description Best Application
Equal Cross All four outlets share the same nominal diameter Four-way branch distribution with the same pipe size in each direction.
Reducing Cross One or more outlets use a different nominal pipe size. Multi-directional piping layouts that require size transitions at the branch points.



Four-Way Branch Design and Welding Performance

Each butt weld cross should support accurate alignment, stable welding and balanced branch performance at the four-way junction.

  • Reinforced Body Geometry: The cross body supports multi-directional branch connections and helps reduce stress concentration around welded joints.

  • Consistent Junction Concentricity: Accurate forming helps maintain branch alignment and fit-up with matching stainless steel pipes.

  • Smooth Internal Transitions: Proper internal geometry helps reduce turbulence and supports stable flow distribution.

  • Beveled Ends: Standard weld-end preparation supports field welding and installation efficiency.



Material Options for Butt Weld Cross Applications

Material selection should match the medium, temperature, corrosion risk and project standard. For this reason, Nonleak offers butt weld cross options in austenitic and duplex stainless steel grades.

Material Grade Key Properties Typical Applications
304/304L Excellent corrosion resistance, good formability General chemical, water treatment, food processing
316/316L Superior chloride resistance, higher strength Marine, pharmaceutical, coastal facilities
Duplex 2205 Twice the yield strength of 316L, excellent SCC resistance Offshore platforms, desalination, sour service
Duplex 2507 Super duplex, extreme corrosion and pitting resistance Highly aggressive chemical, high-chloride environments



Global Standard Compliance

This product is designed for projects that require recognized dimensional, material and testing standards. ASME B16.9 covers factory-made wrought buttwelding fittings, including dimensions, tolerances, ratings, testing and markings. ASTM A403/A403M is also commonly referenced for wrought austenitic stainless steel pressure piping fittings.

All crosses are manufactured and tested to meet or exceed:

  • ASME B16.9: Factory-made wrought buttwelding fitting dimensions

  • ASTM A403/A403M: Wrought austenitic stainless steel pressure piping fittings

  • DIN / ISO / JIS options: Available according to project requirements

  • SH3408 / SH3409 / SH3410 – Petrochemical Industry Standards

  • HG/T21635, DL/T695, SY/T0510 – Industry-Specific Standards



Cross-section Diagram of Butt Weld Cross

Technical cutaway diagram of a butt-weld cross fitting illustrating the internal four-way intersection and flow paths
Precision Junction Engineering: Cross-section reveals the reinforced central hub and smooth internal transitions for optimal flow distribution



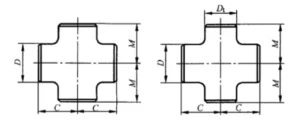

Specification Table for Equal and Reducing Cross Dimensions

Use the specification table to compare nominal pipe size, outside diameter, center-to-end dimensions and equal or reducing cross combinations.

Nominal Pipe Size (NPS) Outside Diameter At Bevel D (mm) Center to End C (mm)
Run Outlet Run(C) Outlet(M)
1/2 x 1/2 21.3 21.3 25.4 25.4
3/4 x 3/4 26.7 26.7 28.4 28.4
1 x 1 33.4 33.4 38.1 38.1
1-1/4 x 1-1/4 42.2 42.2 47.8 47.8
1-1/2 x 1-1/2 48.3 48.3 57.2 57.2
2 x 2 60.3 60.3 63.5 63.5
2-1/2 x 2-1/2 73 73 76.2 76.2
3 x 3 88.9 88.9 85.9 85.9
3-1/2 x 3-1/2 101.6 101.6 95.2 95.2
4 x 4 114.3 114.3 104.6 104.6
5 x 5 141.3 141.3 124 124
6 x 6 168.3 168.3 142.7 142.7
8 x 8 219.1 219.1 177.8 177.8
10 x 10 273.1 273.1 215.9 215.9
12 x 12 323.9 323.9 254 254
14 x 14 355.6 355.6 279.4 279.4
16 x 16 406.4 406.4 304.8 304.8
18 x 18 457.2 457.2 342.9 342.9
20 x 20 508 508 381 381
22 x 22 558.8 558.8 419.1 419.1
24 x 24 609.6 609.6 431.8 431.8
26 x 26 660.4 660.4 495.3 495.3
28 x 28 711.2 711.2 520.7 520.7
30 x 30 762 762 558.8 558.8

How to Use the Cross Dimension Table

Before ordering, confirm the required nominal size, branch configuration, wall thickness, material grade and applicable standard. If your project requires a non-standard stainless steel butt weld cross, send drawings, specifications or a piping isometric drawing with your inquiry.

For complete dimensional data for all sizes (DN10–DN2000), download our Butt-Weld Cross Technical Documentation.



Applications for Stainless Steel Butt Weld Cross

  • Oil & Gas: Four-way branch connections for process pipelines and utility piping systems.

  • Petrochemical: Multi-directional welded branch connections for chemical media lines.

  • Power Generation: Branch distribution for steam, cooling water and auxiliary piping systems.

  • Offshore Platforms: Compact branch layouts for topside piping and process systems.

  • Water Treatment: Corrosion-resistant connections for clean water, wastewater and treatment equipment.

  • Shipbuilding: Stainless steel four-way branch fittings for marine piping systems.



Quality Assurance & Testing

Nonleak supports dimensional inspection, visual inspection, material verification and testing documentation according to project requirements. For site pressure testing, tightness checks and final inspection procedures, review our Testing & Acceptance guidelines.

  • Material Traceability: Mill certificates can be provided for raw materials according to order requirements.

  • Dimensional Inspection: Check outside diameter, center-to-end dimensions, branch alignment and weld-end geometry.

  • Non-Destructive Testing: RT, UT, PT or MT can be arranged according to project requirements.

  • Mechanical Testing: Tensile strength, hardness, flattening tests per batch.

  • Chemical Analysis: Material composition verification is available when required.

  • Hydrostatic Testing: Available upon customer request.



Custom Options

  • Special Materials: Other stainless steel or duplex grades are available upon request.

  • Non-Standard Dimensions: Custom outlet sizes and dimensions can be discussed according to drawings.

  • End Preparation: Beveled ends are standard, while special weld-end preparation can be provided when required.

  • Marking: Laser marking, labels and packaging can follow customer specifications.
