Stainless Steel Press Fit Tee for Branch Pipe Connections
The stainless steel press fit tee is designed to create reliable branch connections in double-press pipe systems. This product range includes equal tee and reducing tee options, helping installers build straight branch lines, size transitions and compact pipe layouts with consistent connection quality.
Made from 304 / 316L stainless steel, the tee supports corrosion resistance, clean media delivery and long-term piping performance. It is suitable for building water supply, HVAC, industrial piping and prefabricated pipe modules where stable branch connections are required.
Press Fit Tee Options
This product combines the main non-threaded tee options in one range:

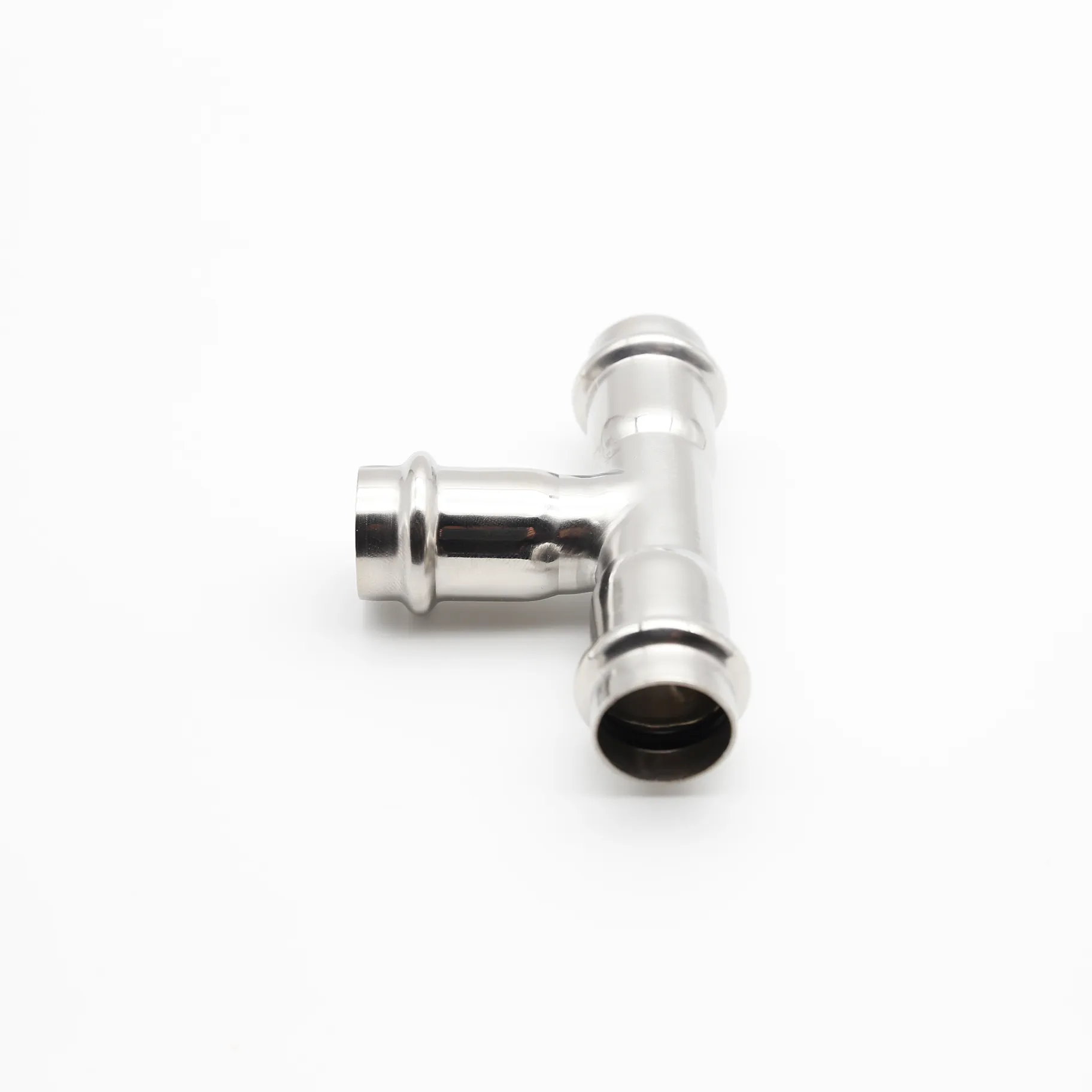

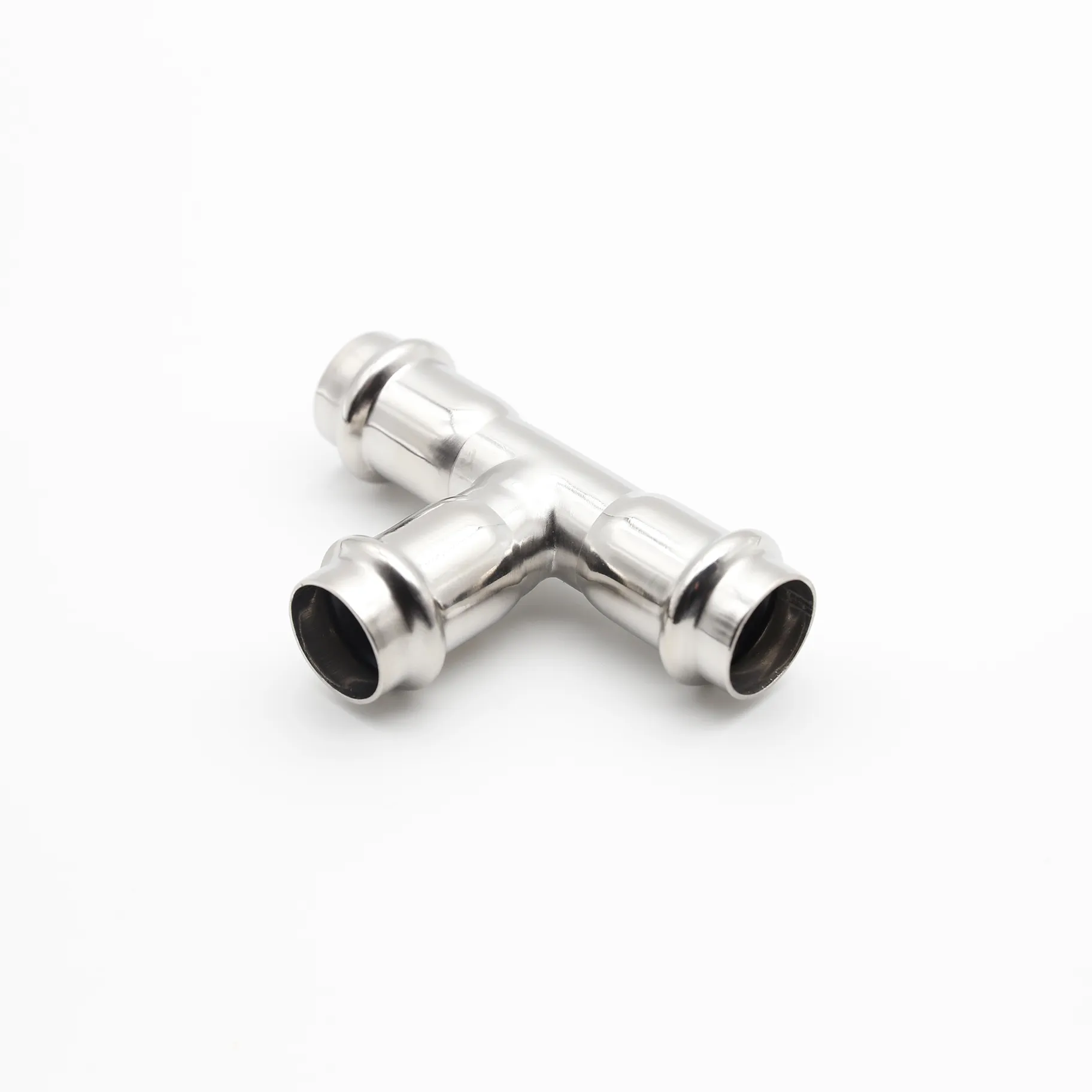

- Equal Tee: three ports have the same nominal diameter

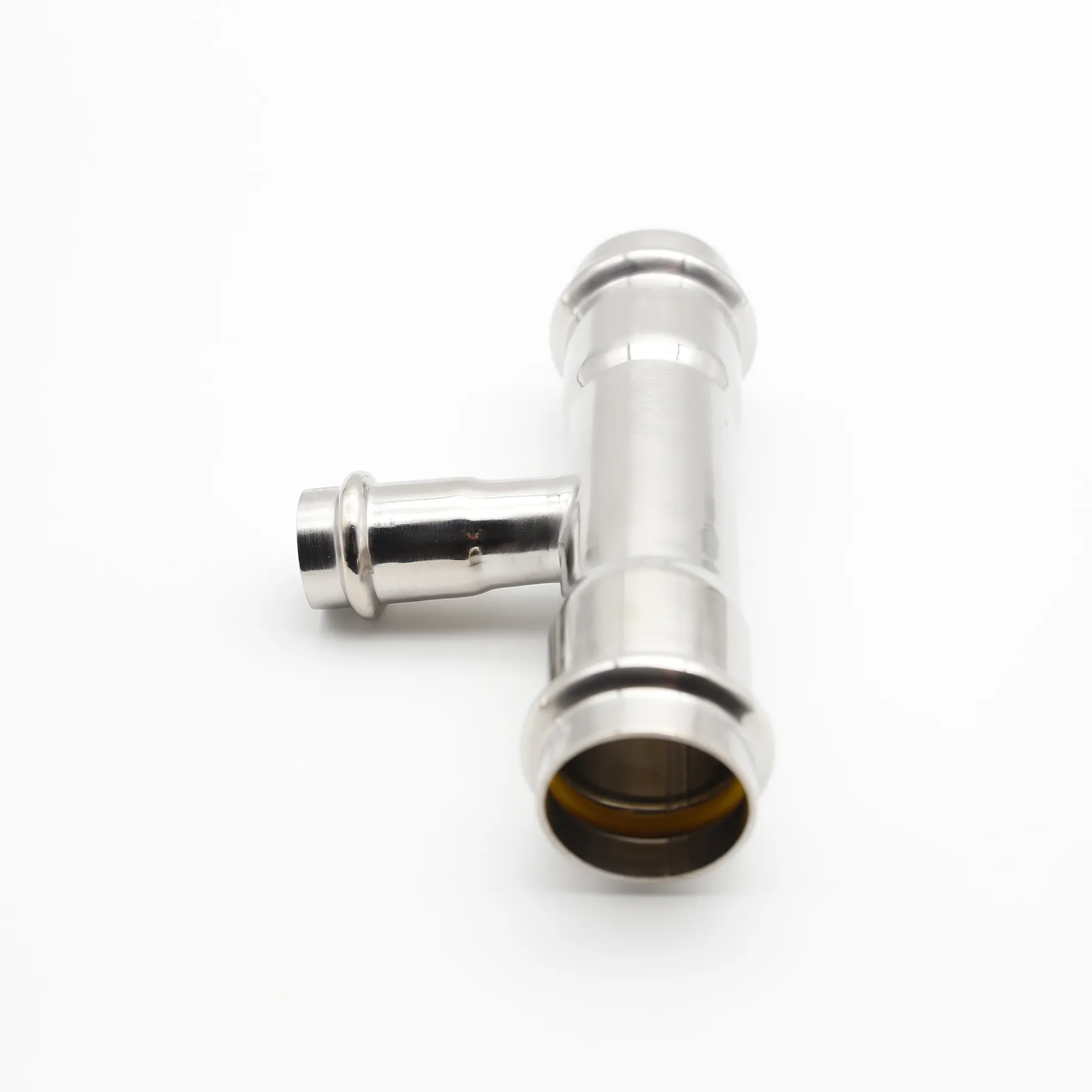

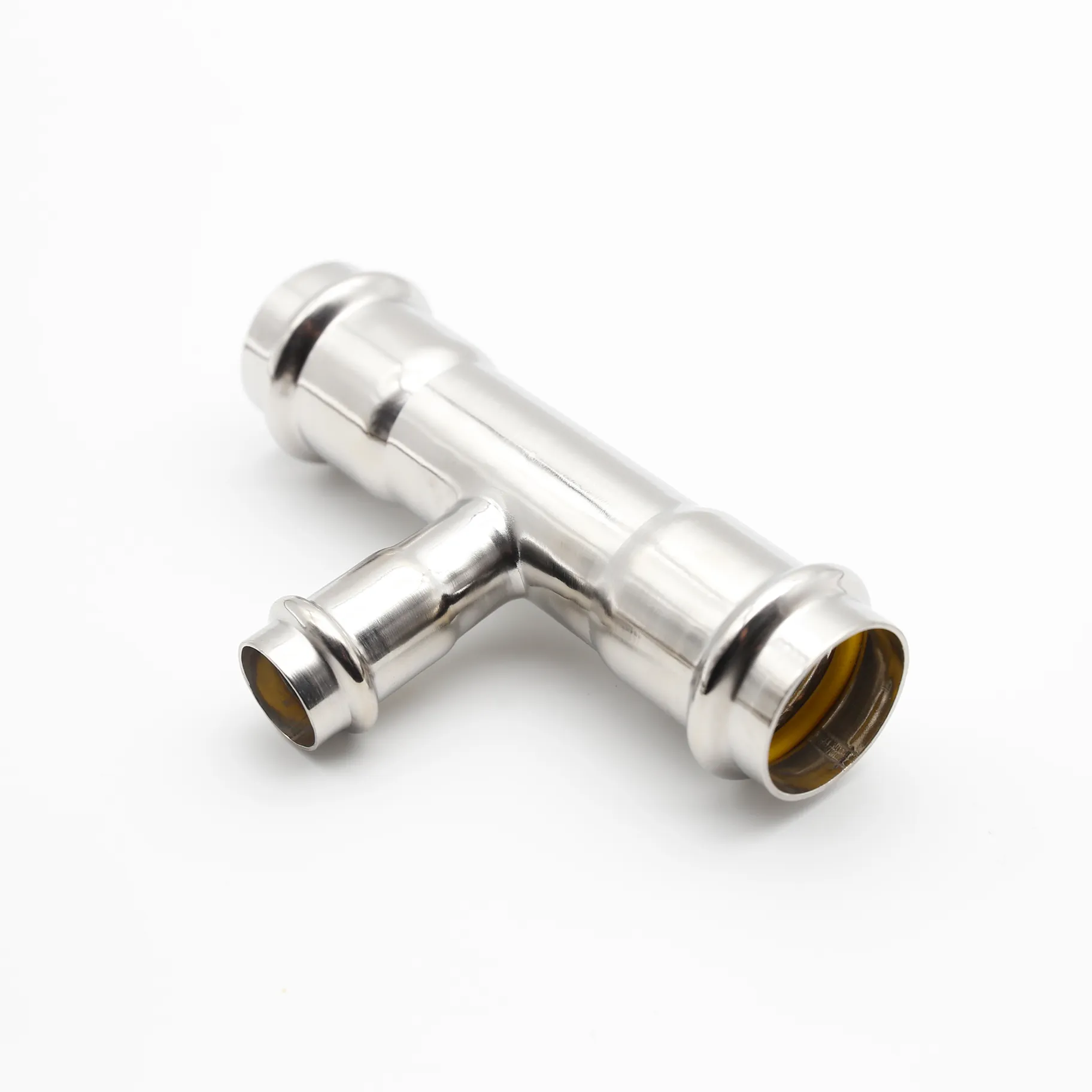

- Reducing Tee, Branch Smaller Than Run: the branch outlet is smaller than the main run

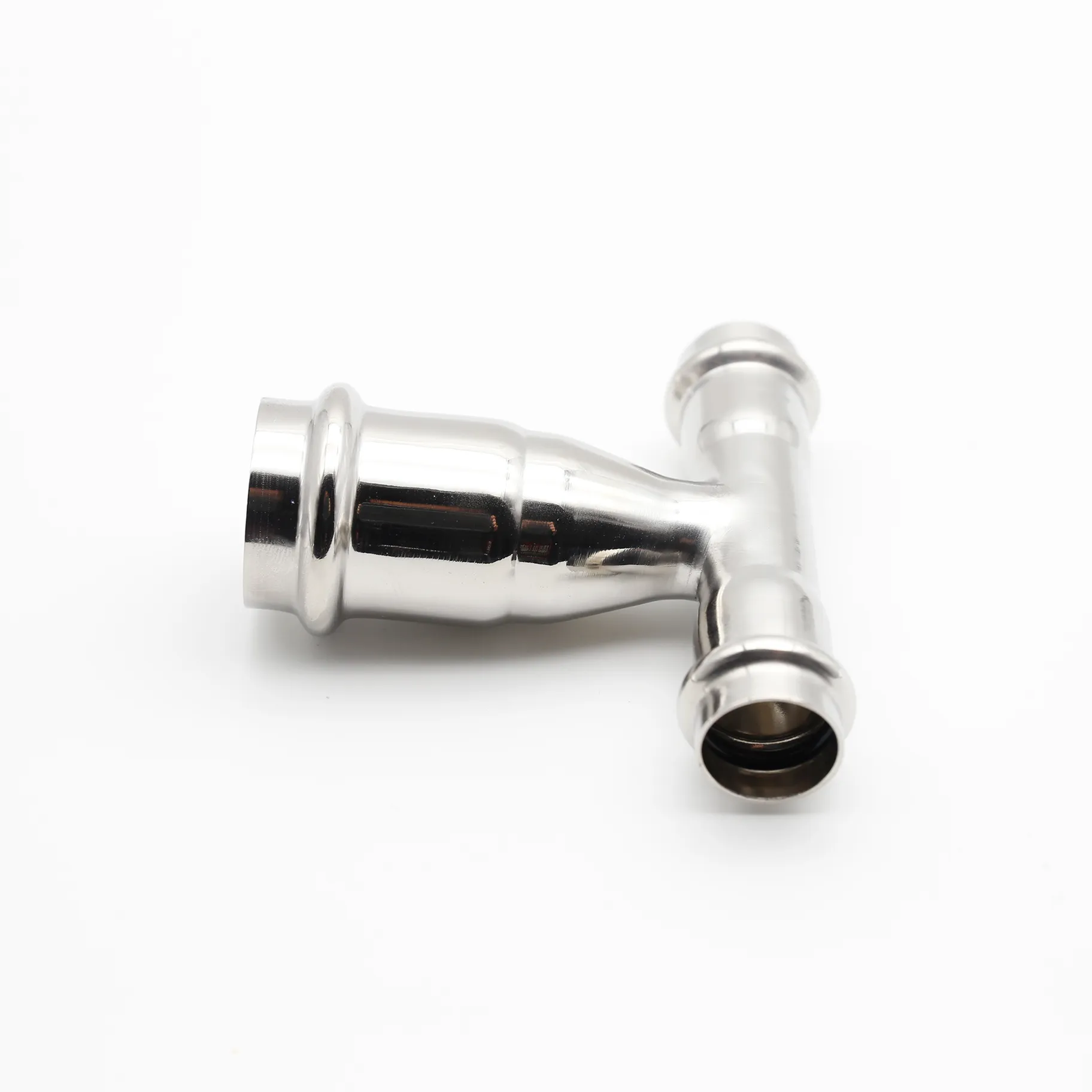

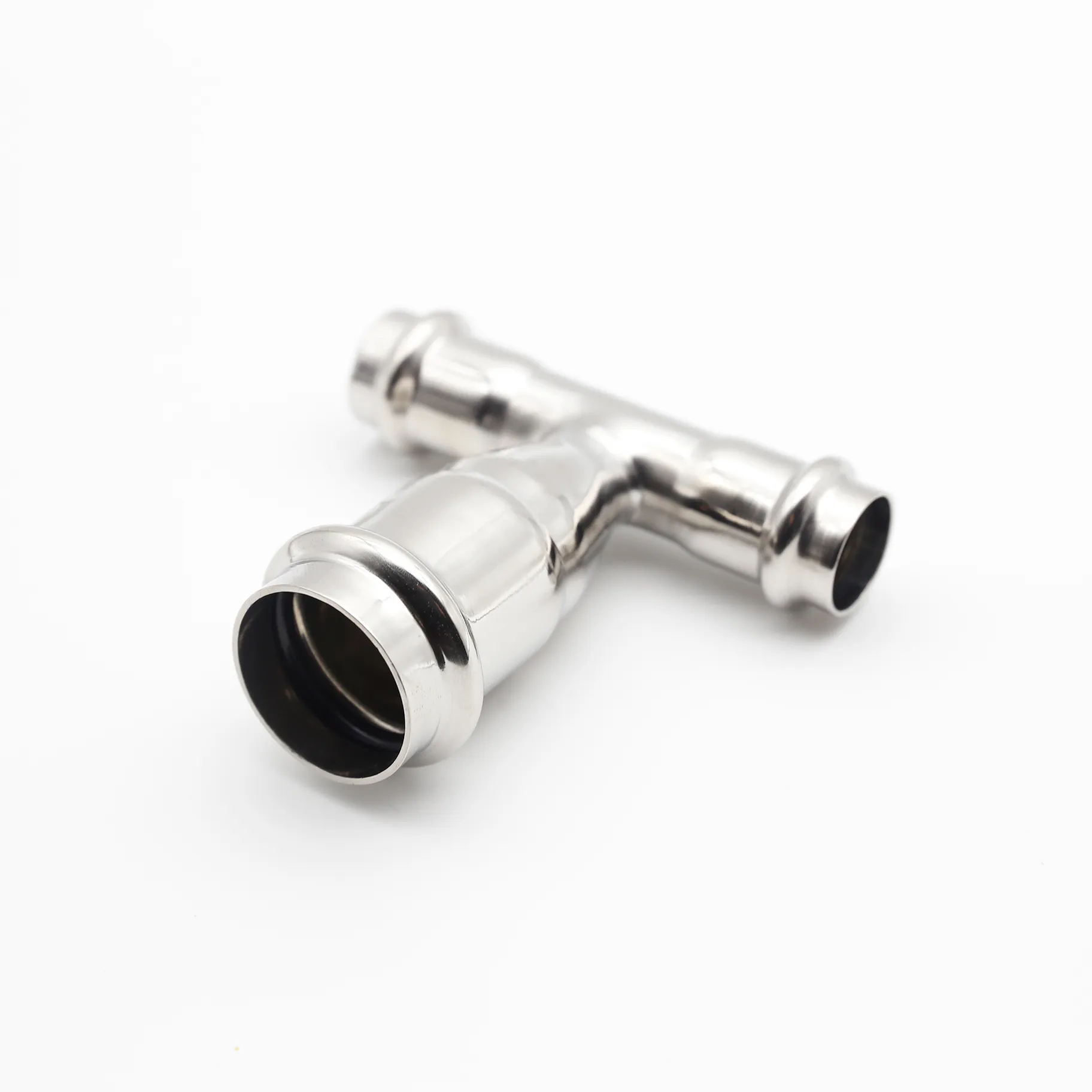

- Reducing Tee, Branch Larger Than Run: the branch outlet is larger than the main run for special routing needs
By combining these options in one product range, the press fit tee helps project teams select the right branch connection without switching between separate product pages.
Equal Tee vs Reducing Tee
An equal tee is used when the main pipe and branch pipe share the same size. It is suitable for standard branch lines in water supply, HVAC and industrial stainless steel piping systems.
A reducing tee is used when the branch pipe size differs from the main run. The branch may be smaller or larger depending on the flow design, equipment layout and installation requirements. This structure helps installers connect different pipe sizes while keeping the system compact and organized.
Key Advantages
- Reliable branch connection: suitable for creating clean and stable branch lines in double-press pipe systems.
- Equal and reducing options: supports both same-size and size-transition branch connections.
- Stainless steel material: works with stainless steel pipes to support corrosion resistance and clean media delivery.
- Installation efficiency: press-fit installation helps reduce on-site complexity compared with welding or threading.
- Prefabrication friendly: standardized tee options support modular piping work and repeatable installation quality.
Cross-Section Diagram
The cross-section diagrams help installers and project engineers understand the tee structure, connection area and pipe insertion direction before installation.
- Equal Tee Cross-Section Diagram
-
Equal tee structure showing the branch connection and double-press sealing area. - Reducing Tee Cross-Section Diagram
-
Reducing tee structure for connecting different pipe sizes in double-press piping systems.
Material, Standards and Quality Control
The stainless steel double press-fit tee is available in 304 and 316L stainless steel according to project requirements. Each fitting is manufactured for dimensional consistency, surface quality and connection reliability.
Nonleak performs product inspection and system testing to support stable performance in building water supply, HVAC and industrial piping applications. For more information about pressure checks and acceptance procedures, visit our Testing & Acceptance page.
For broader reference, project teams can also review the GB/T 19228.1 stainless steel press-fitting standard when evaluating press-fitting requirements.
Specification Table
Use the specification table to list equal tee and reducing tee options separately or in one combined table.
| Model | Nominal Diameter | Dimensions(mm) | Dimensions(inch) |
| SKT15 | DN15 | 16 | 5/8″ |
| SKT20 | DN20 | 20 | 13/16″ |
| SKT25 | DN25 | 25.4 | 1″ |
| SKT32 | DN32 | 32 | 1-1/4″ |
| SKT40 | DN40 | 40 | 1-9/16″ |
| SKT50 | DN50 | 50.8 | 2″ |
| SKT60 | DN60 | 63.5 | 2-1/2″ |
| SKT65 | DN65 | 76.1 | 3″ |
| SKT80 | DN80 | 88.9 | 3-1/2″ |
| SKT100 | DN100 | 101.6 | 4″ |
| SKT125 | DN125 | 133.3 | 5-1/4″ |
| SKT150 | DN150 | 159 | 6-1/4″ |
| SKT200 | DN200 | 219 | 8-5/8″ |
For full model sizes, dimensions and project selection details, please download the corresponding product parameter sheet or contact Nonleak for technical support.
Typical Applications
- Creating branch lines in potable water systems
- HVAC heating and cooling distribution networks
- Industrial stainless steel pipe systems
- Prefabricated plumbing modules for faster on-site assembly
- Pipe layouts requiring equal or reducing branch connections
- Projects requiring clean, corrosion-resistant stainless steel pipe fittings and pipeline accessories
