Stainless Steel Double Press-Fit Elbow

Stainless Steel Double Press-Fit Elbow for 45° and 90° Pipe Direction Changes

The stainless steel press fit elbow is designed for reliable direction changes in double-press pipe systems. This product range includes 45° and 90° elbow options, with A-Type and B-Type structures available for different installation layouts.

Made from 304 / 316L stainless steel, the elbow supports corrosion resistance, clean media delivery and long-term piping performance. It is suitable for building water supply, HVAC, industrial piping and prefabricated pipe modules where stable connections and accurate pipe routing are required.

Press Fit Elbow Options

This product combines four elbow options in one range:

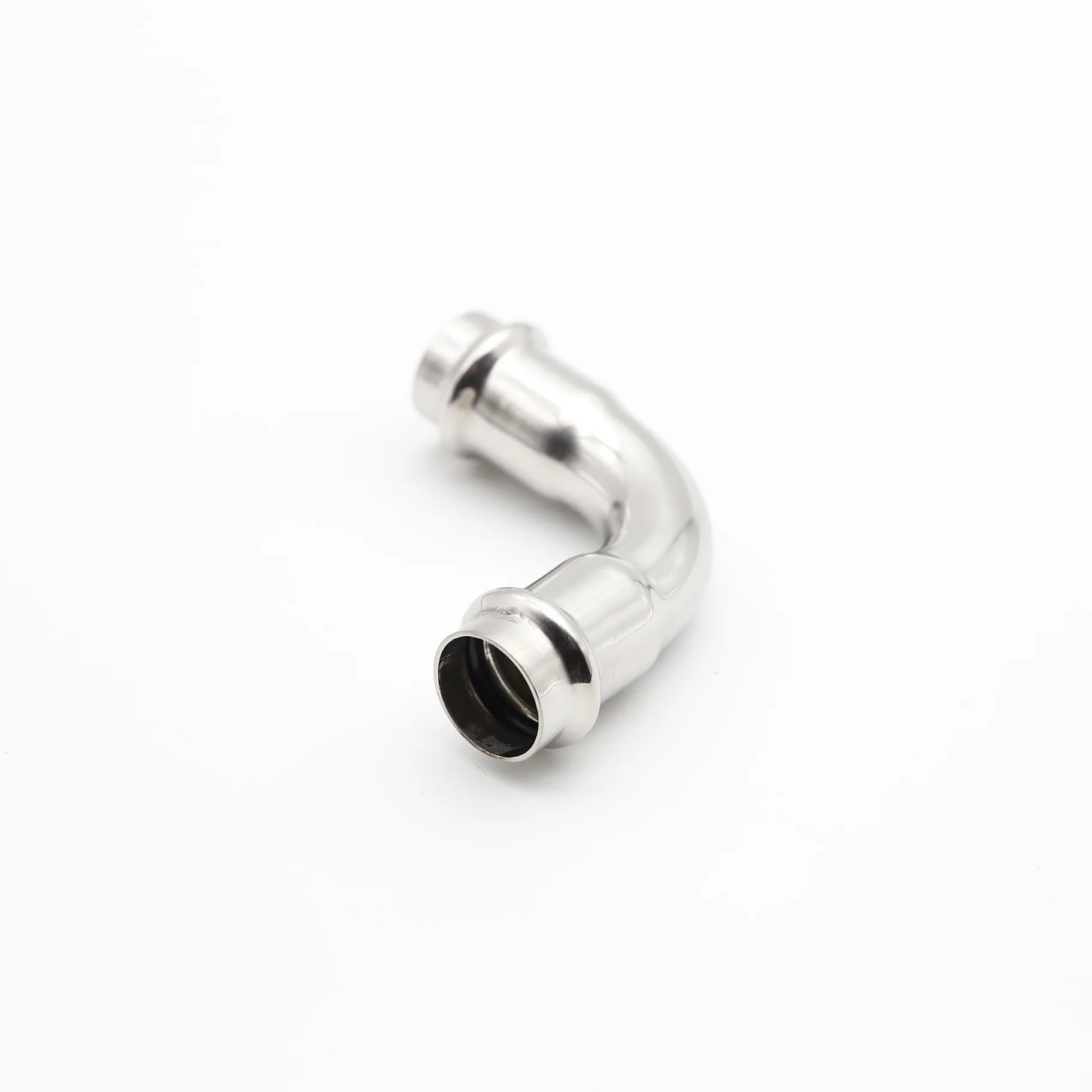

• 90° A-Type double press-fit elbow
• 90° B-Type double press-fit elbow

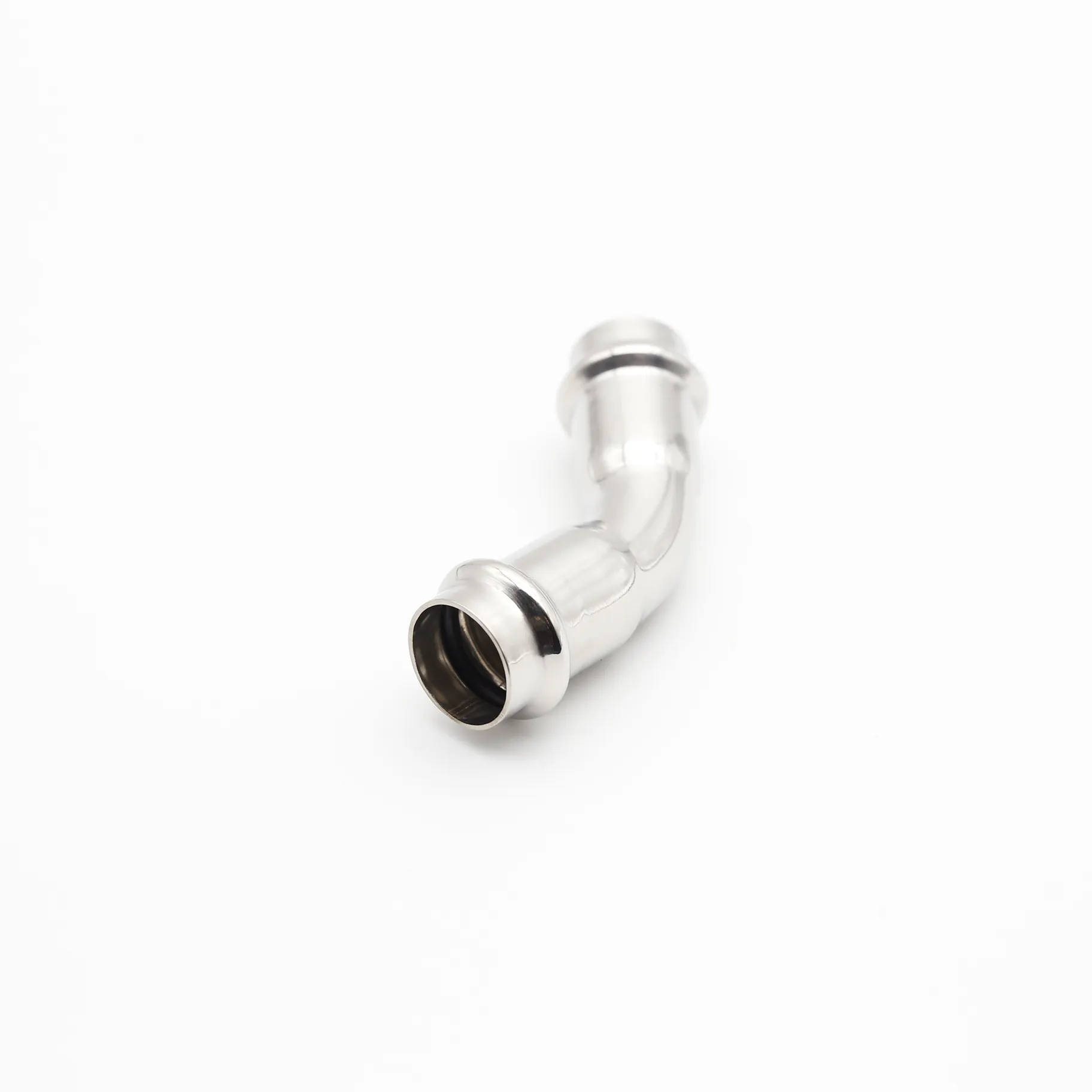

• 45° A-Type double press-fit elbow

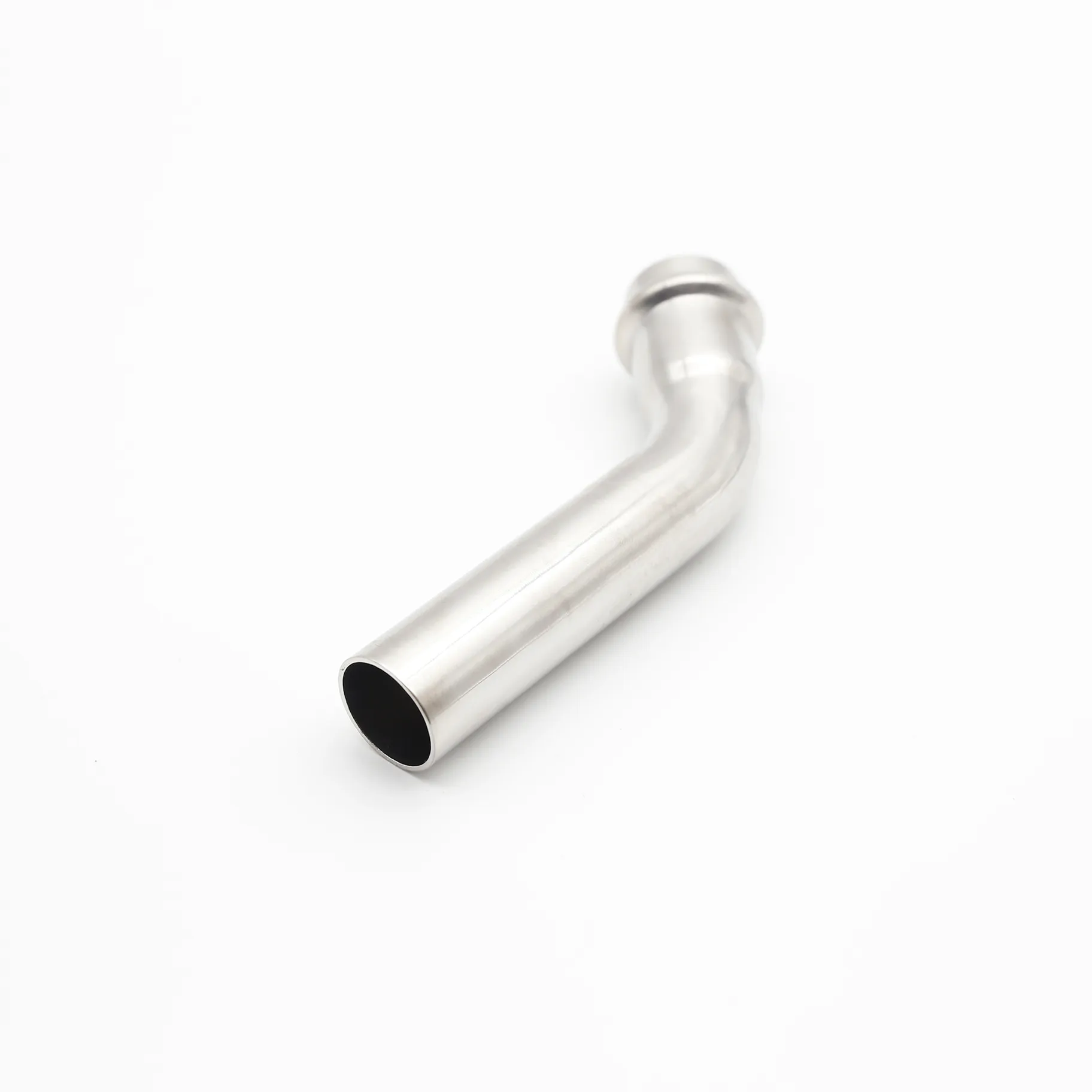

• 45° B-Type double press-fit elbow

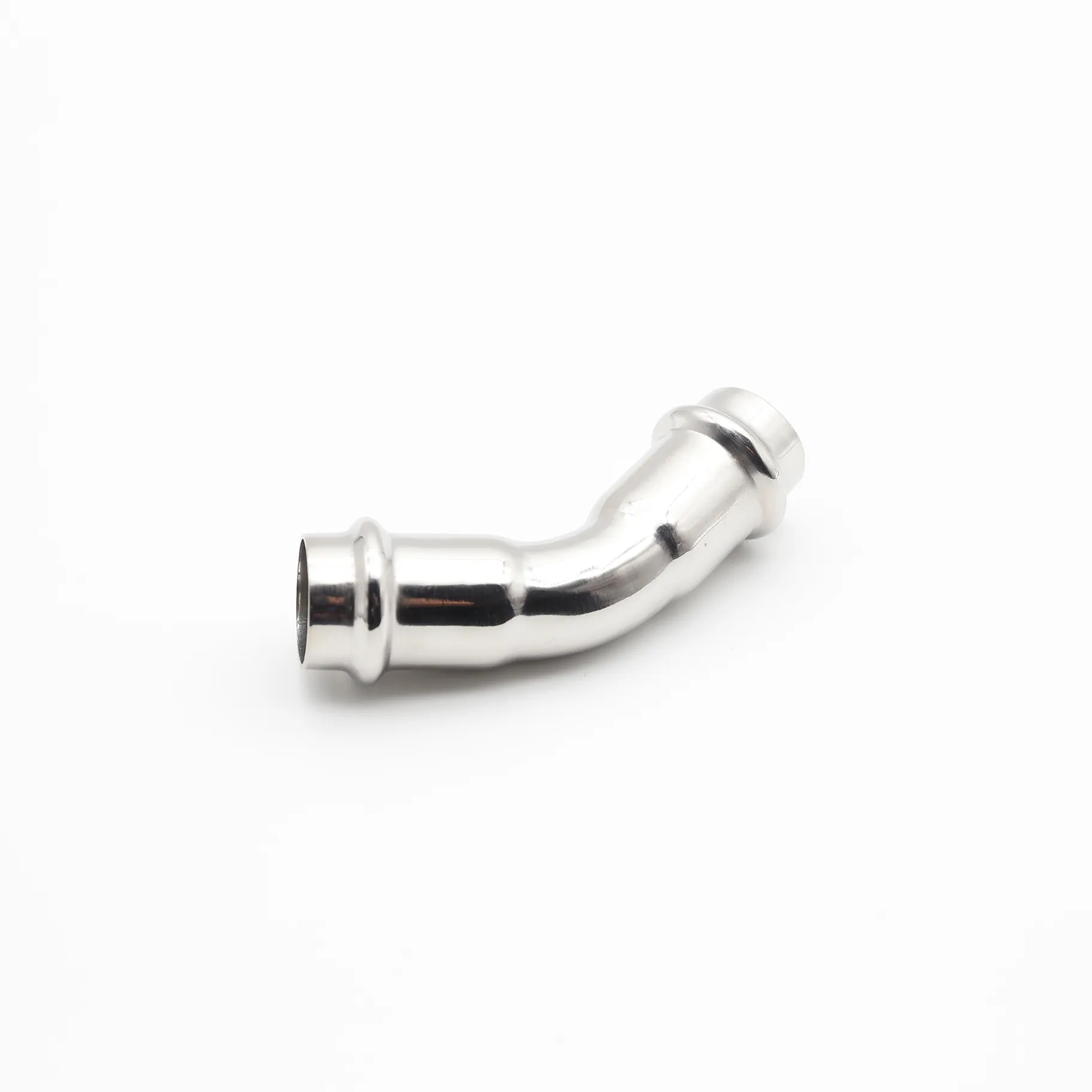

The 90° elbow is used for standard right-angle pipe direction changes. The 45° elbow is suitable for smoother direction adjustment, compact routing and installation areas where a smaller turning angle is preferred.

A-Type vs B-Type Connection

A-Type and B-Type elbows give installers more flexibility during pipe layout and prefabrication.

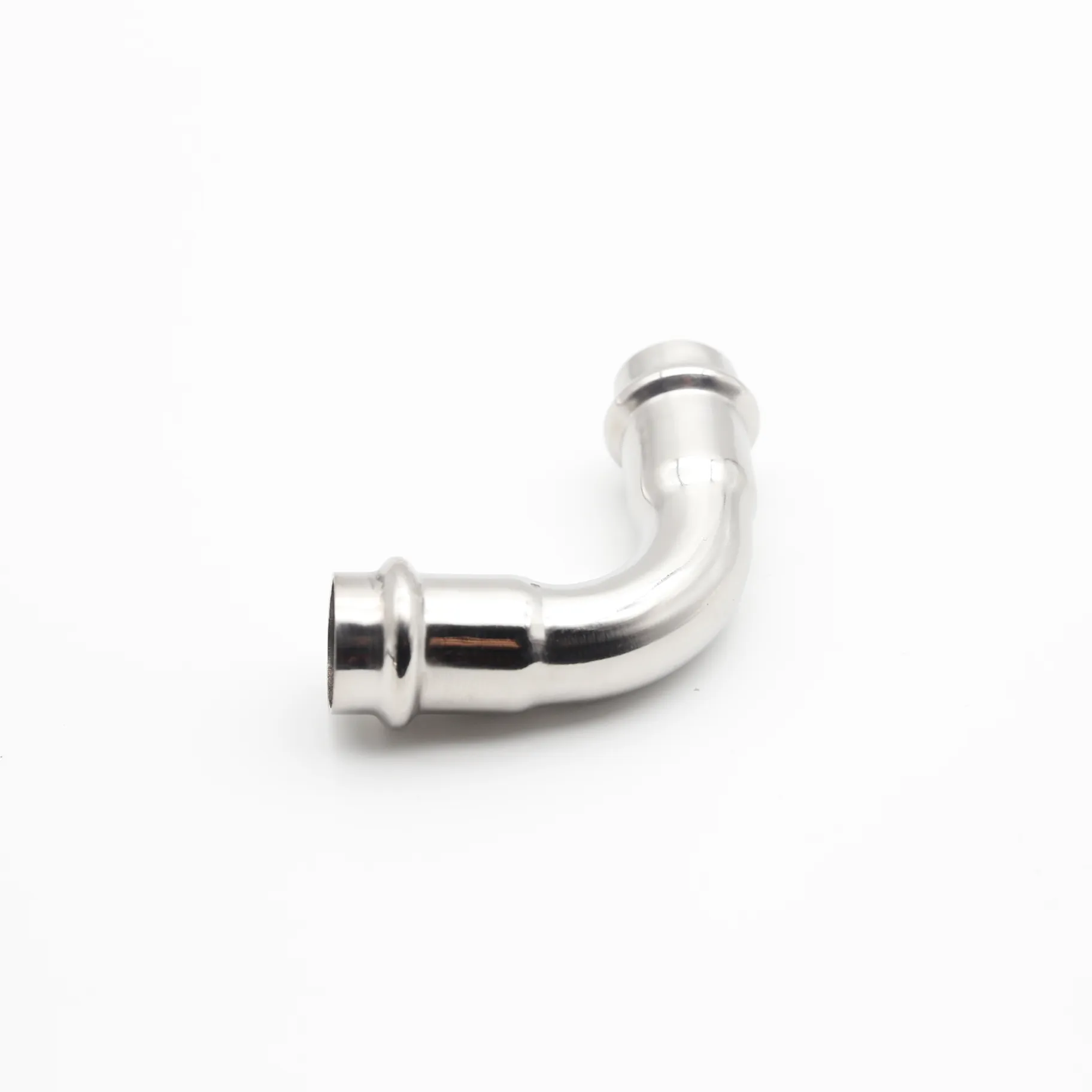

• A-Type: designed for double-press connection on both ends. It is suitable for standard pipe-to-pipe direction changes in new installation and prefabricated pipe modules.

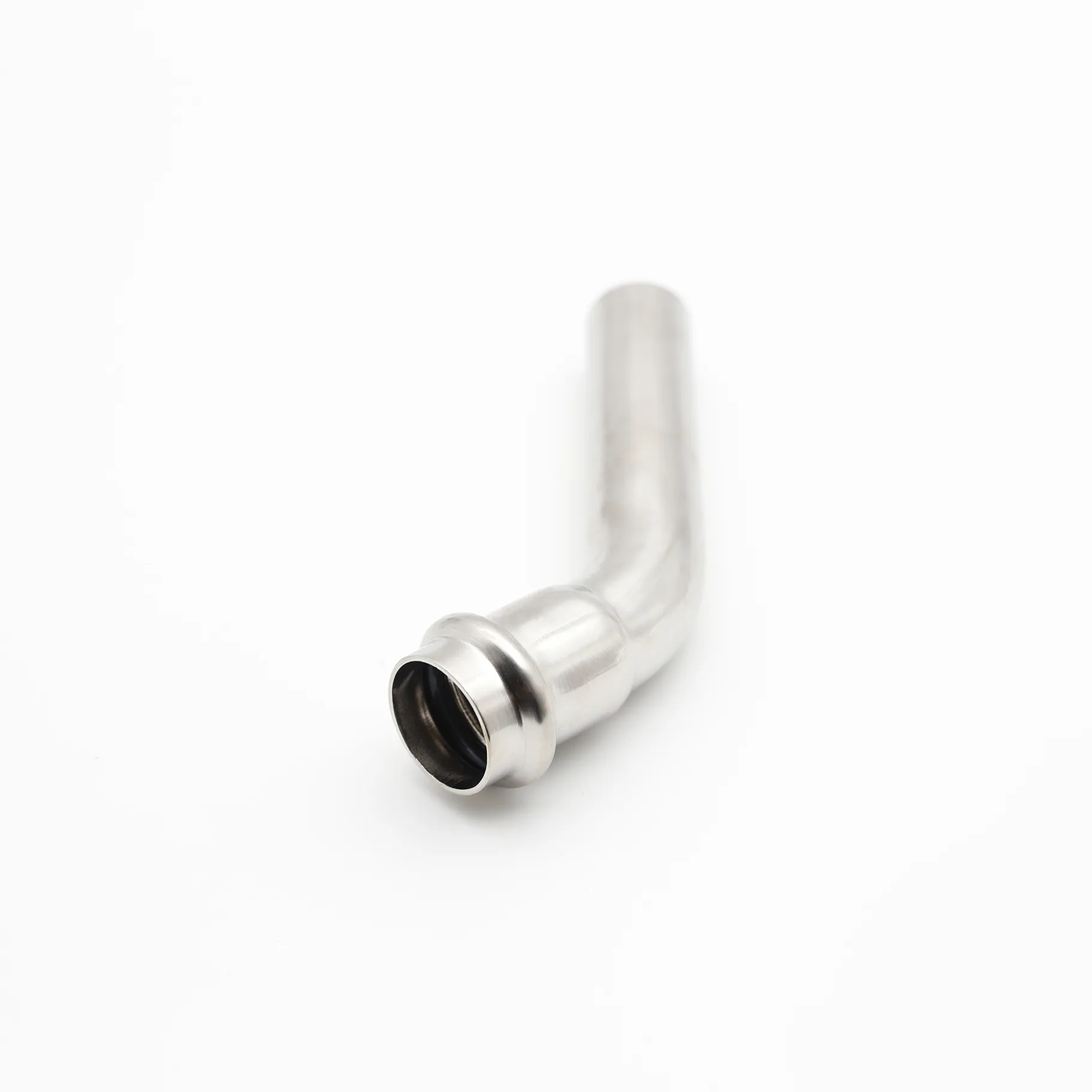

• B-Type: designed for layouts where one side requires a different connection structure or installation adjustment. It is useful when connecting to equipment, valves, existing pipe sections or special routing conditions.

By offering both A-Type and B-Type structures, this press fit elbow range helps installers select the right connection option for different project requirements.

Key Advantages

• Accurate direction changes: 45° and 90° options support flexible pipe routing in building and industrial systems.
• Stable double-press connection: the fitting is designed for secure installation with compatible stainless steel pipes and press tools.
• Clean stainless steel material: 304 / 316L stainless steel supports corrosion resistance and clean media delivery.
• Installation efficiency: press-fit installation helps reduce on-site complexity compared with welding or threading.
• Prefabrication friendly: standardized elbow options support modular piping work and repeatable installation quality.

Cross-Section Diagram

The cross-section diagrams show the structure of the 45° and 90° elbow profiles. They help installers and project engineers understand the fitting geometry, connection area and pipe insertion direction before installation.

• 90° Press Fit Elbow Cross-Section Diagram

•

• 45° Press Fit Elbow Cross-Section Diagram

•

Material, Standards and Quality Control

The stainless steel double press-fit elbow is available in 304 and 316L stainless steel according to project requirements. Each fitting is manufactured for dimensional consistency, surface quality and connection reliability.

Nonleak performs product inspection and system testing to support stable performance in building water supply, HVAC and industrial piping applications. For projects that require specific standards, material grades or pressure requirements, please confirm technical details with the Nonleak team before specification.

Specification Table

Typical Applications

• Building cold and hot water supply systems
• HVAC piping and mechanical rooms
• Industrial stainless steel pipe systems
• Prefabricated pipe modules for modular construction
• Pipe routing areas that require 45° or 90° direction changes
• Projects requiring clean, corrosion-resistant stainless steel pipe connections
